Shamrock Controls 225A AC F-Range 3 Pole Contactor
Shamrock Controls 225A AC F-Range 3 Pole Contactor
SKU:CON-208a82
High-performance 225A AC F-Range 3 Pole Contactor meeting international safety standards for industrial applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Shamrock Controls 225A AC F-Range 3 Pole Contactor
$499.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 225A AC F-Range 3 Pole Contactor
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 225 Ampere Maximum Inductive Alternating Current (AC) F-Range 3 Pole Contactor is a high-performance contactor designed for industrial applications. With a maximum operating current of 225A and a power dissipation of 18W per pole, this contactor is built to handle heavy-duty electrical loads. It complies with a range of international standards such as BSEN80947, IEC60947-1, IEC60947-4, JEM1008, NFCEN60947, and VDE0660, ensuring reliability and safety. Approved by CSA, IEC, and UL, this contactor is suitable for use in a variety of settings.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.3 V·A
Control Circuit Characteristics Power Circuit Connection Tighten
1.2 N·m

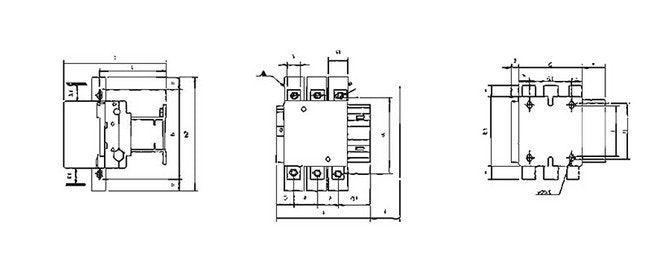

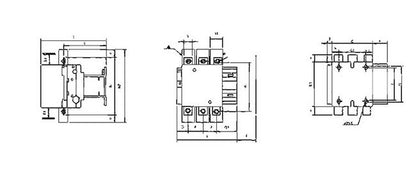

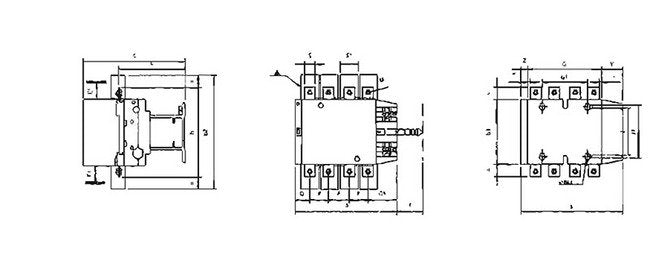

Dimensions Diameter
M10
Dimensions Dimension A
168.5 mm
Dimensions Dimension B
197 mm
Dimensions Dimension B1
137 mm
Dimensions Dimension B2
360 mm
Dimensions Dimension C
181 mm
Dimensions Dimension G
111 mm
Dimensions Dimension G1
80 mm
Dimensions Dimension I
130 mm
Dimensions Dimension J
106 mm
Dimensions Dimension J1
120 mm
Dimensions Dimension L
113.5 mm
Dimensions Dimension M
172 mm
Dimensions Dimension P
48 mm
Dimensions Dimension Q
20 mm
Dimensions Dimension Q1
51.5 mm
Dimensions Dimension S
25 mm
Dimensions Dimension S1
44.5 mm
Dimensions Dimension Y
44 mm
Dimensions Dimension Z
13.5 mm
Dimensions Minimum Electrical Tolerance According To Breaking Ca
15 mm
Dimensions Minimum Electrical Tolerance According To Operating V
10 mm
Pole Characteristics Bar Size
32 x 4 mm
Pole Characteristics Bolt Diameter
10 mm²
Pole Characteristics Cable With Lug Size
185 mm
Pole Characteristics Maximum Power Rating At 200 Voltage
50 hp
Pole Characteristics Maximum Power Rating At 230 Voltage
65 hp
Pole Characteristics Maximum Power Rating At 480 Voltage
130 hp
Pole Characteristics Maximum Power Rating At 600 Voltage
155 hp
Pole Characteristics Rated Insulation Voltage
1500 V
Pole Characteristics Rated Operational Voltage
0 to 1000 V
Specifications Power Dissipation Per Pole For Ac 3 The Above Ope
18 W
