Shamrock Controls 265A Inductive AC F-Range 3 Pole Contactor
Shamrock Controls 265A Inductive AC F-Range 3 Pole Contactor
SKU:CON-70cb22
Reliable Shamrock Controls 265A AC F-Range Contactor with high breaking capacity & wide temp range.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Shamrock Controls 265A Inductive AC F-Range 3 Pole Contactor
$349.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 265A Inductive AC F-Range 3 Pole Contactor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 265 Ampere F-Range 3 Pole Contactor ensures reliable and efficient electrical switching with features like a tight sealing standard version protective treatment, wide operating temperature range, and high breaking capacity. This contactor meets BSEN80947, IEC60947-1, IEC60947-4, JEM1008, NFCEN60947, and VDE0660 standards, approved by CSA, IEC, and UL for quality assurance.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
110 V·A
Control Circuit Characteristics Power Circuit Connection Tighten
1.2 N·m

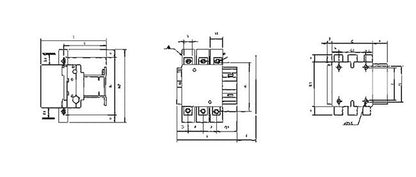

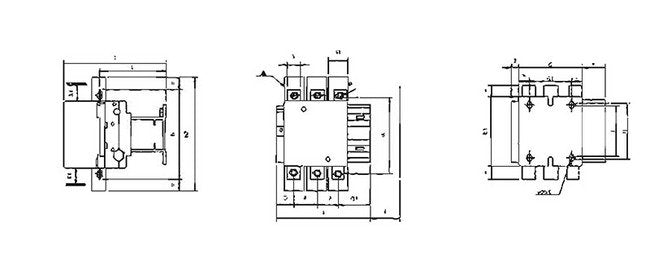

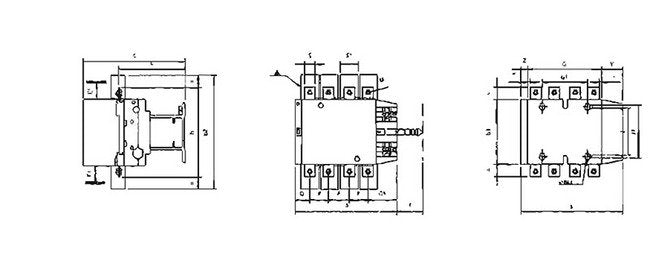

Dimensions Diameter
M10
Dimensions Dimension A
201.5 mm
Dimensions Dimension B
209 mm
Dimensions Dimension B1
145 mm
Dimensions Dimension B2
370 mm
Dimensions Dimension C
214 mm
Dimensions Dimension G
142 mm
Dimensions Dimension G1
96 mm
Dimensions Dimension I
147 mm
Dimensions Dimension J
106 mm
Dimensions Dimension J1
120 mm
Dimensions Dimension L
141 mm
Dimensions Dimension M
178 mm
Dimensions Dimension P
48 mm
Dimensions Dimension Q
39 mm
Dimensions Dimension Q1
66.5 mm
Dimensions Dimension S
25 mm
Dimensions Dimension S1
44.5 mm
Dimensions Dimension Y
38 mm
Dimensions Dimension Z
21.5 mm
Dimensions Minimum Electrical Tolerance According To Breaking Ca
15 mm
Dimensions Minimum Electrical Tolerance According To Operating V
10 mm
Pole Characteristics Bar Size
32 x 4 mm
Pole Characteristics Bolt Diameter
10 mm²
Pole Characteristics Cable With Lug Size
240 mm
Pole Characteristics Maximum Power Rating At 200 Voltage
60 hp
Pole Characteristics Maximum Power Rating At 230 Voltage
75 hp
Pole Characteristics Maximum Power Rating At 480 Voltage
150 hp
Pole Characteristics Maximum Power Rating At 600 Voltage
200 hp
Pole Characteristics Rated Insulation Voltage
1500 V
Pole Characteristics Rated Operational Voltage
0 to 1000 V
Specifications Power Dissipation Per Pole For Ac 3 The Above Ope
22 W
