Shamrock Controls 400A 3-Pole Contactor
Shamrock Controls 400A 3-Pole Contactor
SKU:CON-3dc8d0
High-performing 400A 3-Pole Contactor meeting international safety standards for industrial use.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Shamrock Controls 400A 3-Pole Contactor
$299.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 400A 3-Pole Contactor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 400A 3-Pole Contactor is a high-performance electrical component designed for industrial applications. With a maximum inductive AC rating of 400A, this contactor is built to ensure reliable power distribution. Meeting various international standards including BSEN80947, IEC60947-1, and UL approvals, it guarantees safety and quality. Ideal for heavy-duty use, this contactor operates smoothly within a wide temperature range and offers superior power dissipation per pole.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.9 V·A
Control Circuit Characteristics Operational Control Voltage Limi
0.85 to 110 Uc
Control Circuit Characteristics Power Circuit Connection Tighten
1.2 N·m
Control Circuit Characteristics Rated Control Circuit Voltage At
48 to 600 V

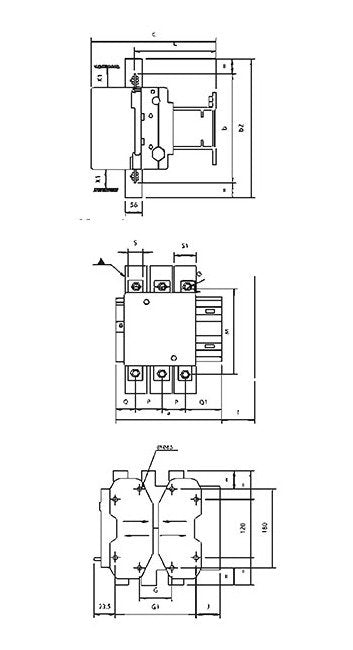

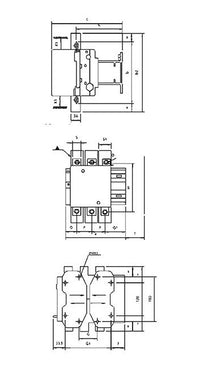

Dimensions Dimension A
211 mm
Dimensions Dimension B
205 mm
Dimensions Dimension B1
209 mm
Dimensions Dimension B2
375 mm
Dimensions Dimension C
220 mm
Dimensions Dimension G
170 mm
Dimensions Dimension G1
170 mm
Dimensions Dimension I
119 mm
Dimensions Dimension J
19.5 mm
Dimensions Dimension L
145 mm
Dimensions Dimension M
181 mm
Dimensions Dimension P
48 mm
Dimensions Dimension Q
43 mm
Dimensions Dimension Q1
74 mm
Dimensions Dimension S
25 mm
Dimensions Dimension S1
44.5 mm
Dimensions Maximum Dimension G
102 mm
Dimensions Maximum Dimension G1
192 mm
Dimensions Minimum Dimension G
86 mm
Dimensions Minimum Dimension G1
156 mm
Dimensions Minimum Electrical Tolerance According To Breaking Ca
20 mm
Dimensions Minimum Electrical Tolerance According To Operating V
15 mm
Pole Characteristics Bar Size
30 x 5 mm
Pole Characteristics Bolt Diameter
10 mm²
Pole Characteristics Cable With Lug Size
2 x 150 mm
Pole Characteristics Maximum Power Rating At 200 Voltage
100 hp
Pole Characteristics Maximum Power Rating At 230 Voltage
125 hp
Pole Characteristics Maximum Power Rating At 480 Voltage
250 hp
Pole Characteristics Maximum Power Rating At 600 Voltage
300 hp
Pole Characteristics Rated Insulation Voltage
1500 V
Pole Characteristics Rated Operational Voltage
0 to 1000 V
Specifications Power Dissipation Per Pole For Ac 3 The Above Ope
45 W
