Shamrock Controls 5.5-8A Overload Relay
Shamrock Controls 5.5-8A Overload Relay
SKU:REL-2b5b6a
Protect against overloads with Shamrock Controls 5.5-8A Relay. Features built-in single-phase protection, tripping indicator, and more.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Shamrock Controls 5.5-8A Overload Relay
$69.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 5.5-8A Overload Relay
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

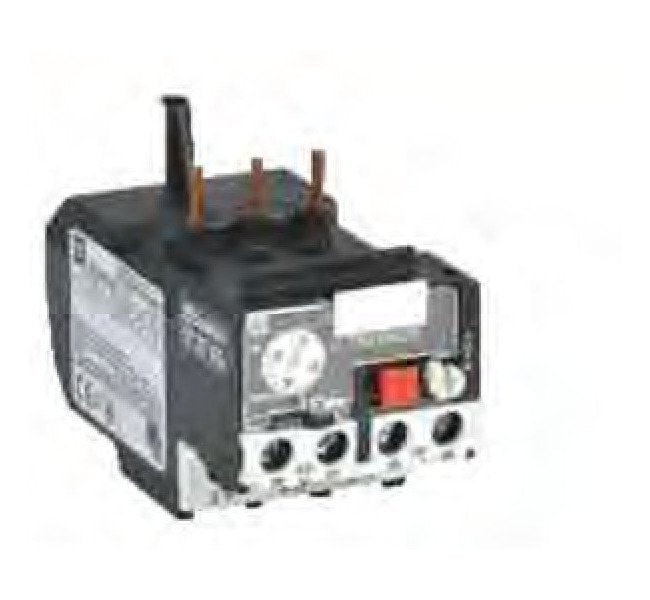

The Shamrock Controls 5.5 to 8 Ampere Overload Relay offers reliable protection against operation overload, single phasing, and phase loss. With a versatile selectable overload range for single or three-phase operation, this relay ensures the safety and efficiency of your electrical systems. Key features include built-in single-phase protection, potention-free contacts, yellow flag indicator for tripping detection, manual reset facility, and IP20 finger touch-proof design.
Product Specifications
Accessories Accessories

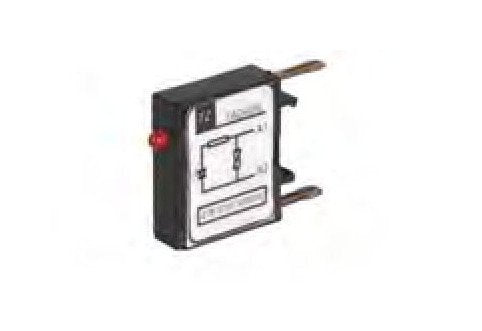

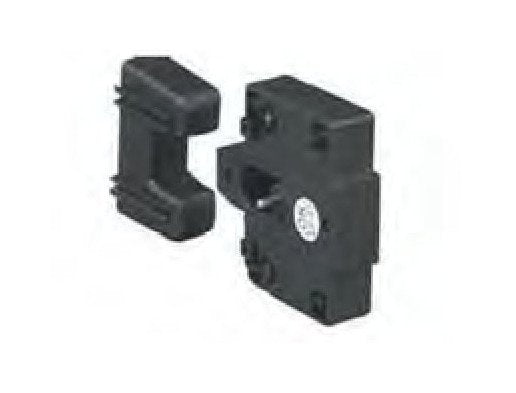

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
5.5 to 8 A
Standard Power Rating Of 3 Phase Motors 5060 Hertz Hz Acs Catego
5.5 kW
