Shamrock Controls 500A Inductive AC F-Range 3 Pole Contactor
Shamrock Controls 500A Inductive AC F-Range 3 Pole Contactor
SKU:CON-de1a2b
Reliable 500A Inductive AC Contactor with International Standards Compliance - Ideal for Industrial Use
Regular price
$379.99
Regular price
Sale price
$379.99
Unit price
per
Initiate Order
Shamrock Controls 500A Inductive AC F-Range 3 Pole Contactor
$379.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 500A Inductive AC F-Range 3 Pole Contactor
$379.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 500 Ampere Maximum Inductive Alternating Current (AC) F-Range 3 Pole Contactor is a reliable solution for industrial and institutional applications. With a robust design conforming to international standards like BSEN80947, IEC60947-1, and IEC60947-4, this contactor boasts a maximum resistive current of 700 A and various power ratings to suit different voltage requirements. Designed with precision and durability in mind, this contactor is widely approved by organizations such as CSA, IEC, and UL, ensuring high-quality performance under demanding conditions.
Product Specifications
Accessories Accessories

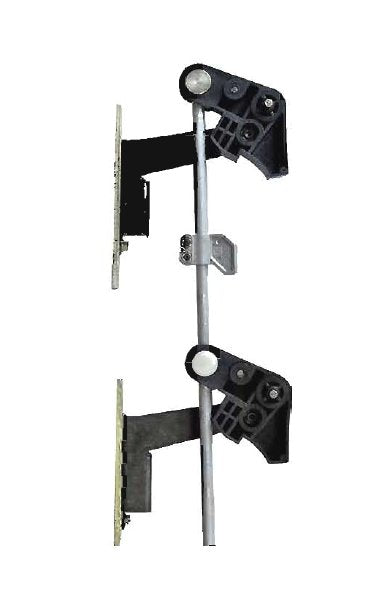

Item #: LA9-FJ970Item Name: Mechanical Interlocks Horizontally MountedItem #: LA9-FK4KItem Name: Mechanical Interlocks Vertically MountedItem #: LA5-F400803 (F500)Item Name: Main Contact SetsItem #: LA9-F703Item Name: Protective Shroud CoversItem #: LA9-FK976Item Name: Power Connectors Wire Sets with Two Identical ConnectorsItem #: LA9-F50082Item Name: Set of Power Connections - 3 Pole Changeover Contactor Pair (On Request)Item #: LC2-F500AItem Name: 3 Pole Mechanically Interlocked Contactors (On Request)Item #: LA9D09980(BR)Item Name: Wire Mounting Maximum 250/400 Alternating Current (AC) Voltage Coil Suppressor
Control Circuit Characteristics Average Consumption At 20 Degree
0.9 V·A
Control Circuit Characteristics Average Operating Time At Rated
100 to 170 ms
Control Circuit Characteristics Dropout Temperature 0 55 Degree
0.3 to 0.5 Uc
Control Circuit Characteristics Flexible Cable Without Cable End
1/4 mm²
Control Circuit Characteristics Flexible Cable With End 1 Conduc
1/4 mm²
Control Circuit Characteristics Flexible Cable With End 2 Conduc
1/2.5 mm²
Control Circuit Characteristics Industry Standards
Underwriters' Laboratories (UL)
Control Circuit Characteristics Maximum Operating Rate Per Hour
2400 cycles
Control Circuit Characteristics Mechanical Life Rated Control Ci
10 cycles
Control Circuit Characteristics Operational Control Voltage Limi
0.85 to 110 Uc
Control Circuit Characteristics Power Circuit Connection Tighten
1.2 N·m
Control Circuit Characteristics Rated Control Circuit Voltage At
48 to 600 V
Control Circuit Characteristics Solid Cable Without End 1 Or 2 C
1/4 mm²
Note Note
Per pole 2 fixed contacts and moving contacts, 2 detecors, 1 back plate, fixing screws and washers
Pole Characteristics Ambient Air Storage Temperature
-60 to +80 ºC
Pole Characteristics Approvals
Canadian Standards Association (CSA) | International Electrotechnical Commission (IEC) | Underwriters' Laboratories (UL)
Pole Characteristics Around The Device Operating Temperature
-5 to +55 ºC | 0.8 to 1.1 ºC
Pole Characteristics Around The Device Permissible Temperature
-50 to 70 ºC
Pole Characteristics Bar Size
40 x 5 mm
Pole Characteristics Bolt Diameter
10 mm²
Pole Characteristics Cable With Lug Size
2 x 240 mm
Pole Characteristics Maximum Power Rating At 200 Voltage
150 hp
Pole Characteristics Maximum Power Rating At 230 Voltage
200 hp
Pole Characteristics Maximum Power Rating At 480 Voltage
400 hp
Pole Characteristics Maximum Power Rating At 600 Voltage
500 hp
Pole Characteristics Rated Breaking Capacity 220 To 440 Volt V
5000 A
Pole Characteristics Rated Insulation Voltage
1500 V
Pole Characteristics Rated Operational Voltage
0 to 1000 V
Specifications Power Dissipation Per Pole For Ac 3 The Above Ope
45 W
