The Shamrock Controls 500 Ampere Maximum Inductive AC F-Range 4 Pole Contactor is a top-tier solution for industrial electrical systems. With a robust design conforming to BSEN80947, IEC60947-1, IEC60947-4, JEM1008, NFCEN60947, and VDE0660 standards, this contactor ensures reliable performance. It features a 1500V rated insulation voltage, approvals from CSA, IEC, and UL, and operates at temperatures ranging from -60 to +80°C. The Shamrock Controls contactor is ideal for demanding environments where durability and precision are paramount.
Product Specifications
Accessories Accessories
Item #: LA5-F500804 (F5004)Item Name: Main Contact SetsItem #: LA9-F708Item Name: Protective Shroud CoversItem #: LA9D09980(BR)Item Name: Wire Mounting Maximum 250/400 Alternating Current (AC) Voltage Coil Suppressor
Control Circuit Characteristics Average Consumption At 20 Degree
0.9 V·A
Control Circuit Characteristics Average Operating Time At Rated
100 to 170 ms
Control Circuit Characteristics Mechanical Life Rated Control Ci
10 cycles
Control Circuit Characteristics Operational Control Voltage Limi
0.85 to 110 Uc
Control Circuit Characteristics Power Circuit Connection Tighten
1.2 N·m
Control Circuit Characteristics Power Dissipation Per Pole For A
45 W
Control Circuit Characteristics Rated Control Circuit Voltage At
48 to 600 V

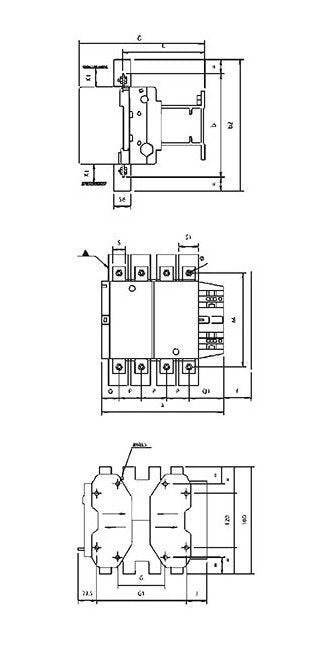

Dimensions Dimension A
389 mm
Dimensions Dimension B2
464 mm
Dimensions Dimension G
240 mm
Dimensions Dimension J1
68.5 mm
Dimensions Dimension Q
60 mm
Dimensions Dimension Q1
89 mm
Dimensions Dimension S
25 mm
Dimensions Dimension S1
64 mm
Dimensions Maximum Dimension G
275 mm
Dimensions Minimum Dimension G
150 mm
Dimensions Minimum Electrical Tolerance According To Operating V
15 mm
Pole Characteristics Bar Size
40 x 5 mm
Pole Characteristics Bolt Diameter
10 mm²
Pole Characteristics Cable With Lug Size
2 x 240 mm
Pole Characteristics Maximum Power Rating At 200 Voltage
150 hp
Pole Characteristics Maximum Power Rating At 230 Voltage
200 hp
Pole Characteristics Maximum Power Rating At 480 Voltage
400 hp
Pole Characteristics Maximum Power Rating At 600 Voltage
500 hp
Pole Characteristics Rated Breaking Capacity 220 To 440 Volt V
5000 A
Pole Characteristics Rated Insulation Voltage
1500 V
Pole Characteristics Rated Operational Voltage
0 to 1000 V
Specifications Minimum Electrical Tolerance According To Breakin
20 mm
