Shamrock Controls 630A F-Range 3 Pole Contactor
Shamrock Controls 630A F-Range 3 Pole Contactor
SKU:CON-9ebbec
High-performance 630A 3 Pole Contactor for industrial applications with wide temperature range and robust construction.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Shamrock Controls 630A F-Range 3 Pole Contactor
$499.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 630A F-Range 3 Pole Contactor
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 630 Ampere Maximum Inductive Alternating Current F-Range 3 Pole Contactor is a high-performance contactor suitable for heavy-duty industrial applications. With a rated insulation voltage of 1500V, it conforms to BSEN80947, IEC60947-1, IEC60947-4, JEM1008, NFCEN60947, VDE0660 standards and holds approvals from CSA, IEC, and UL. This contactor features a Standard Version Protective Treatment, wide temperature range capability, and robust construction for reliable operation in diverse environments.
Product Specifications
Accessories Accessories

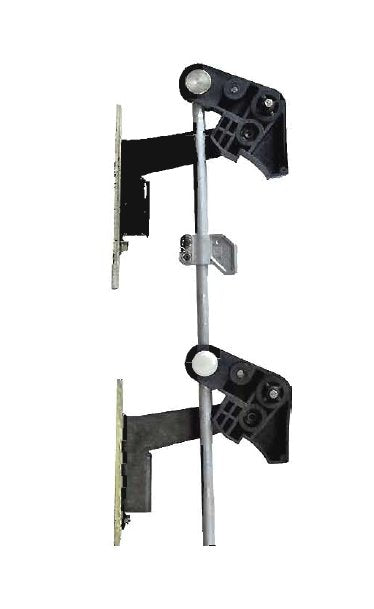

Item #: LA9-FL970Item Name: Mechanical Interlocks Horizontally MountedItem #: LA9-FL4LItem Name: Mechanical Interlocks Vertically MountedItem #: LA5-F630803 (F630)Item Name: Main Contact SetsItem #: LA9-F704Item Name: Protective Shroud CoversItem #: LA9-FL976Item Name: Power Connectors Wire Sets with Two Identical ConnectorsItem #: LA9-F60082Item Name: Set of Power Connections - 3 Pole Changeover Contactor Pair (On Request)Item #: LC2-F630AItem Name: 3 Pole Mechanically Interlocked Contactors (On Request)Item #: LA9D09980(BR)Item Name: Wire Mounting Maximum 250/400 Alternating Current (AC) Voltage Coil Suppressor
Control Circuit Characteristics Average Consumption At 20 Degree
0.9 V·A
Control Circuit Characteristics Average Operating Time At Rated
100 to 200 ms
Control Circuit Characteristics Dropout Temperature 0 55 Degree
0.25 to 0.5 Uc
Control Circuit Characteristics Flexible Cable With End 1 Conduc
1/4 mm²
Control Circuit Characteristics Flexible Cable With End 2 Conduc
1/2.5 mm²
Control Circuit Characteristics Mechanical Life Rated Control Ci
5 cycles
Control Circuit Characteristics Operational Control Voltage Limi
0.85 to 110 Uc
Control Circuit Characteristics Power Circuit Connection Tighten
1.2 N·m
Control Circuit Characteristics Rated Control Circuit Voltage At
48 to 600 V

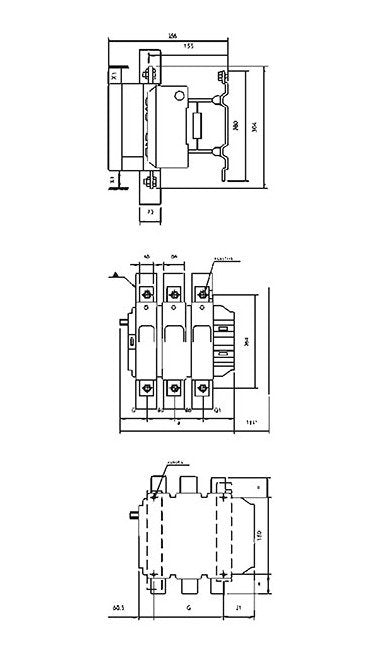

Dimensions Dimension A
306 mm
Dimensions Dimension B2
464 mm
Dimensions Dimension G
180 mm
Dimensions Dimension J1
68.5 mm
Dimensions Dimension Q
60 mm
Dimensions Dimension Q1
89 mm
Dimensions Dimension S
25 mm
Dimensions Dimension S1
64 mm
Dimensions Maximum Dimension G
195 mm
Dimensions Minimum Dimension G
100 mm
Pole Characteristics Bar Size
60 x 5 mm
Pole Characteristics Bolt Diameter
12 mm²
Pole Characteristics Maximum Power Rating At 200 Voltage
250 hp
Pole Characteristics Maximum Power Rating At 230 Voltage
300 hp
Pole Characteristics Maximum Power Rating At 480 Voltage
600 hp
Pole Characteristics Maximum Power Rating At 600 Voltage
800 hp
Pole Characteristics Rated Breaking Capacity 220 To 440 Volt V
6300 A
Pole Characteristics Rated Insulation Voltage
1500 V
Pole Characteristics Rated Operational Voltage
0 to 1000 V
Specifications Power Dissipation Per Pole For Ac 3 The Above Ope
48 W
