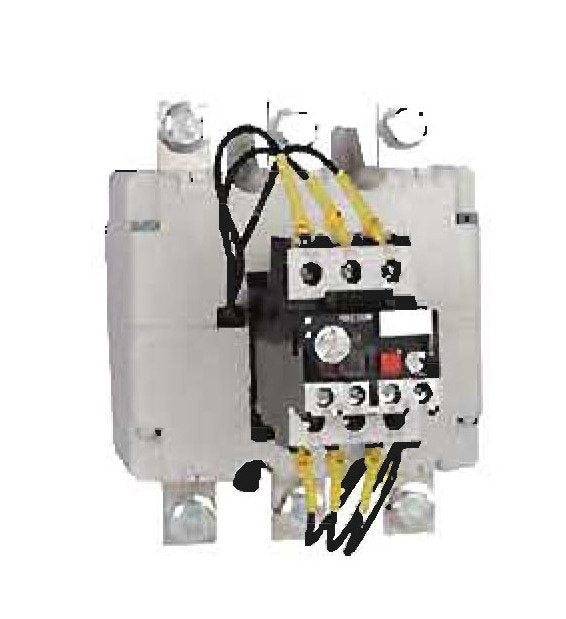

Shamrock Controls 65-105 Ampere T and F Range Overload Relay
Shamrock Controls 65-105 Ampere T and F Range Overload Relay
SKU:REL-d64f6e
Shamrock Controls 65-105 Ampere T and F Range Overload Relay - Class 10 relay with wide power range and international standards compliance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Shamrock Controls 65-105 Ampere T and F Range Overload Relay
$129.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 65-105 Ampere T and F Range Overload Relay
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 65 to 105 Ampere T and F Range Overload Relay is a Class 10 relay ideal for a range of power settings from 25 kW to 90 kW at different voltages. With approvals from CSA, IEC, and UL, this relay conforms to standards like BSEN60947 and offers protection against direct finger contact. It operates seamlessly in temperatures ranging from -60 to 70 ºC, making it reliable in various environments. The durable construction and precise specifications make it perfect for applications requiring efficient overload protection.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Dimension A
126 mm
Dimensions Dimension B
160 mm
Dimensions Dimension C
81 mm
Dimensions Dimension G
40 mm
Dimensions Dimension H
110 mm | 120 mm
Dimensions Dimension I
3 mm
Dimensions Dimension L
56 mm
Dimensions Dimension O
9 mm
Dimensions Dimension P
40 mm
Dimensions Dimension S
20 mm
Dimensions Dimension W
140 mm
Environment Ambient Air Operating Without Derating Temperature A
-25 to 60 ºC
Environment Ambient Air Storage Temperature Around The Device
-60 to 70 ºC
Environment Approvals
Canadian Standards Association (CSA) | International Electrotechnical Commission (IEC) | Underwriters' Laboratories (UL)
Environment Conforming To Standards
BSEN60947 | IEC60947-1 | IEC60947-4-1 | NFCEN 60947-4-1 | VDE0660
Environment Degree Of Protection Conforming To Vde 0106
Protection Against Direct Finger Contact Ingress Protection (IP2X)
Environment Dielectric Strength At 50 Hertz Hz Frequency Conform
6 kV
Environment Impulse Withstand Voltage Conforming To Internationa
6 kV
Environment Maximum Ambient Air Operating Temperature Around The
70 ºC
Environment Minimum Ambient Air Operating Temperature Around The
-40 ºC
Environment Permissible Acceleration Shock Resistance Conforming
11 ms | 15 g
Environment Protective Treatment Conforming To International Ele
TH
Note Note
Protected shrouds for main poles or power poles to be ordered separately for LR1 Relays
Specifications Back Up Fuse Rating Em
0.25 A
Specifications Back Up Fuse Rating G1
160 A
Specifications Power At 220 Volt V
25 kW
Specifications Power At 380 Volt V
51 kW
Specifications Power At 415 Volt V
55 kW
Specifications Power At 440 Volt V
59 kW
Specifications Power At 660 Volt V
90 kW
Specifications Relay Setting Range
65 to 105 A
