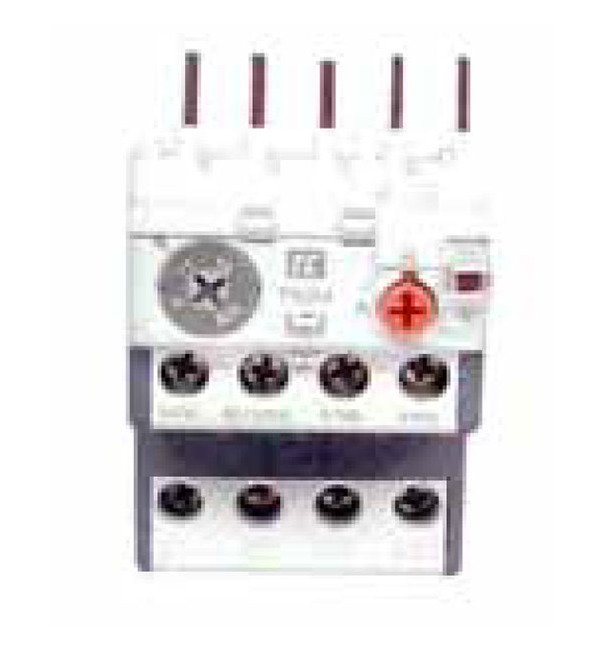

Shamrock Controls 7-10A Mini Overload Relay
Shamrock Controls 7-10A Mini Overload Relay
SKU:REL-e50f9c
Shamrock Controls 7-10A Mini Overload Relay. Direct mountable with screw clamp connection. Suitable for TC1-M6, TC1-M9, TC1-M12 contactors.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Shamrock Controls 7-10A Mini Overload Relay
$39.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 7-10A Mini Overload Relay
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

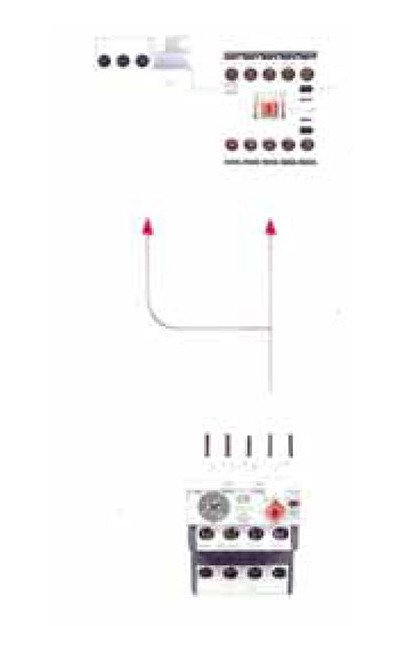

The Shamrock Controls 7-10 Ampere (A) Setting Current Range Mini Overload Relay is designed for direct mounting on TC1-M6, TC1-M9, TC1-M12 mini contactors with a screw clamp connection. With a small width of 45mm, this overload relay offers a setting current range of 7 to 10 A. It features DIN rail or screw mountability and includes a TA1-M09641 optional base with NO + 1 NC potential-free contacts. The relay conforms to Trip Class 10A according to IEC60947-4-1/1S-13947-4-1 standards, with a trip-free design and ambient/manual reset site selectability.
Product Specifications
Additional Information Additional Information
DIN rail or screw mountable with the optional base TA1-M09641 NO + 1 NC Potential free contactsTrip class 10A according to IEC60947-4-1/1S-13947-4-1Ambient/Manual reset site selectableTrip Free design
Alternating Current Ac15 11 Duty Alternating Current Ac15 11 Dut
0.3 A
Direct Current Dc13 11 Duty Direct Current Dc13 11 Duty Auxiliar
0.14 A
Note Note
Values are the ratings of NO contact under auto reset mode
Specifications Setting Current Range
7 to 10 A
Specifications Small Width
45 mm
