Shamrock Controls 800A F-Range 3 Pole Contactors without AC/DC Operating Coil
Shamrock Controls 800A F-Range 3 Pole Contactors without AC/DC Operating Coil
SKU:CON-bf3759
Enhance power control with Shamrock Controls 800A F-Range 3 Pole Contactor, meeting international standards for electric power distribution.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Shamrock Controls 800A F-Range 3 Pole Contactors without AC/DC Operating Coil
$399.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 800A F-Range 3 Pole Contactors without AC/DC Operating Coil
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your electrical systems with the Shamrock Controls 800 Ampere F-Range 3 Pole Contactor designed for maximum inductive AC operation. With a power dissipation of 48W per pole for AC-3 operational current, this contactor meets stringent standards including BSEN80947, IEC60947-1, IEC60947-4, JEM1008, NFCEN60947, and VDE0660. Approved by CSA, IEC, and UL, this contactor offers a rated insulation voltage of 1500V and a wide temperature range from -60 to +80 ºC, making it suitable for diverse environments. Explore efficient power management and reliable performance with this industrially certified contactor.
Product Specifications
Accessories Accessories

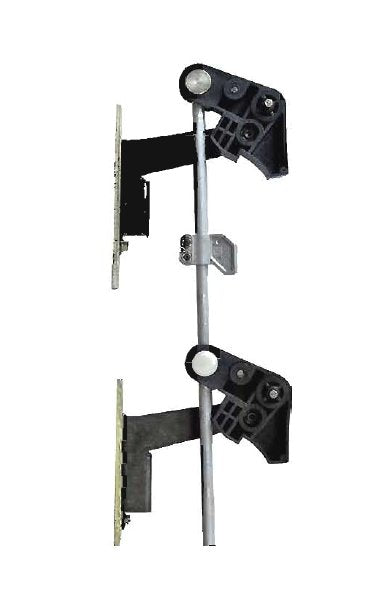

Item #: LA9-FL970Item Name: Mechanical Interlocks Horizontally MountedItem #: LA9-FL4LItem Name: Mechanical Interlocks Vertically MountedItem #: LA5-F800803 (F800)Item Name: Main Contact SetsItem #: LA9-F704Item Name: Protective Shroud CoversItem #: LA9-F80076Item Name: Power Connectors Wire Sets with Two Identical Connectors
Control Circuit Characteristics Average Consumption At 20 Degree
0.9 V·A
Control Circuit Characteristics Average Operating Time At Rated
100 to 200 ms
Control Circuit Characteristics Dropout Temperature 0 55 Degree
0.25 to 0.5 Uc
Control Circuit Characteristics Flexible Cable Without Cable End
1/4 mm²
Control Circuit Characteristics Flexible Cable With End 1 Conduc
1/4 mm²
Control Circuit Characteristics Flexible Cable With End 2 Conduc
1/2.5 mm²
Control Circuit Characteristics Industry Standards
Underwriters' Laboratories (UL)
Control Circuit Characteristics Maximum Operating Rate Per Hour
1200 cycles
Control Circuit Characteristics Mechanical Life Rated Control Ci
5 cycles
Control Circuit Characteristics Operational Control Voltage Limi
0.85 to 110 Uc
Control Circuit Characteristics Power Circuit Connection Tighten
1.2 N·m
Control Circuit Characteristics Rated Control Circuit Voltage At
48 to 600 V
Control Circuit Characteristics Solid Cable Without End 1 Or 2 C
1/4 mm²
Dimensions Dimension A
306 mm
Dimensions Dimension B2
464 mm
Dimensions Dimension G
180 mm
Dimensions Dimension J1
68.5 mm
Dimensions Dimension Q
60 mm
Dimensions Dimension Q1
89 mm
Dimensions Dimension S
25 mm
Dimensions Dimension S1
64 mm
Dimensions Maximum Dimension G
195 mm
Dimensions Minimum Dimension G
100 mm
Note Note
Per pole 2 fixed contacts and moving contacts, 2 detecors, 1 back plate, fixing screws and washers
Pole Characteristics Bar Size
60 x 5 mm
Pole Characteristics Bolt Diameter
12 mm²
Pole Characteristics Rated Insulation Voltage
1500 V
Pole Characteristics Rated Operational Voltage
0 to 1000 V
Specifications Power Dissipation Per Pole For Ac 3 The Above Ope
48 W
