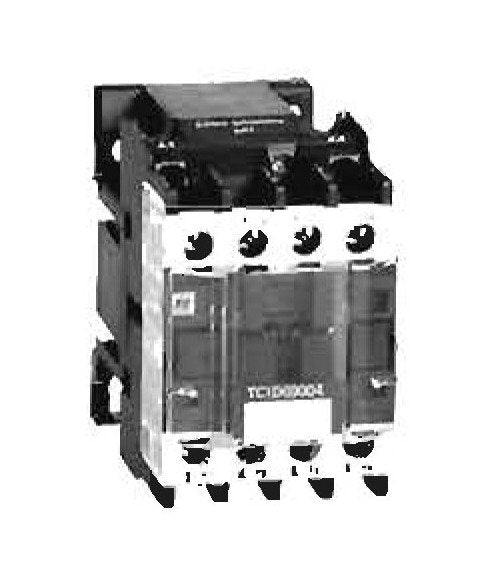

Shamrock Controls 9A AC T-Range 4 Pole Contactor
Shamrock Controls 9A AC T-Range 4 Pole Contactor
SKU:DPC-cef259
High-performance 9A AC T-Range 4 Pole Contactor with reliable auxiliary contacts and VDE-approved protection
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Shamrock Controls 9A AC T-Range 4 Pole Contactor
$139.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 9A AC T-Range 4 Pole Contactor
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 9A Maximum Inductive AC T-Range 4 Pole Contactor is a robust DP contactor with a maximum resistive AC of 25A and various power ratings for different voltage phases. It features normally closed/open auxiliary contacts, high insulation voltage, and approvals from CSA and UL. With a protective treatment conforming to VDE standards, this contactor ensures reliable performance within a wide temperature range. It also offers efficient control circuit characteristics and dimensions suited for versatile installations.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.3 V·A
Control Circuit Characteristics Average Operating Time At Rated
4 to 12 ms
Control Circuit Characteristics Mechanical Life Rated Control Ci
15 cycles
Control Circuit Characteristics Operational Control Voltage For
0.8 to 1.1 Uc
Control Circuit Characteristics Rated Control Circuit Voltage Uc
12 to 660 V
Dimensions Depth D
80 mm
Dimensions Dimension C
80 mm
Dimensions Dimension D Lacdk1
133 mm
Dimensions Dimension D Ta1
113 mm
Dimensions Dimension D Ta2ta3
120 mm
Dimensions Dimension G
35 mm
Dimensions Height H
74 mm
Dimensions Minimum Electrical Clearance D
10 mm
Dimensions Width W
45 mm
Integral Auxillary Contact Characteristics Rated Operational Vol
0 to 660 V
Pole Characteristics Maximum Power Rating At Single Phase 120 Vo
0.5 hp
Pole Characteristics Maximum Power Rating At Single Phase 230 Vo
1 hp
Pole Characteristics Maximum Power Rating At Three Phase 200 Vol
2 hp
Pole Characteristics Maximum Power Rating At Three Phase 230 Vol
2 hp
Pole Characteristics Maximum Power Rating At Three Phase 480 Vol
5 hp
Pole Characteristics Maximum Power Rating At Three Phase 600 Vol
7.5 hp
Pole Characteristics Number Of Power Poles
3
Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo
0.2 W
Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V
85 A
Pole Characteristics Rated Breaking Capacity At 500 Voltage V
175 A
Pole Characteristics Rated Insulation Voltage
1000 V
