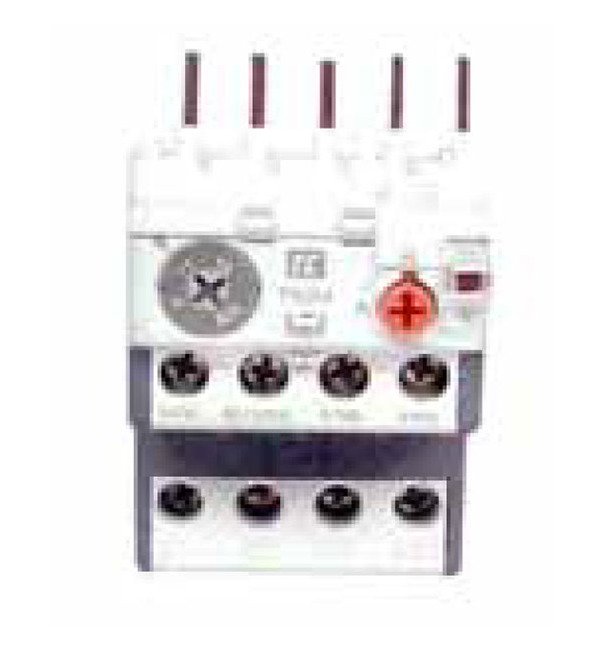

Shamrock Controls Mini Overload Relay 0.1-0.16A Setting
Shamrock Controls Mini Overload Relay 0.1-0.16A Setting
SKU:REL-a55ebb
Compact Shamrock Controls Mini Overload Relay for precise system protection. Setting current range 0.1-0.16A, DIN/screw mountable, trip class 10A.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Shamrock Controls Mini Overload Relay 0.1-0.16A Setting
$24.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls Mini Overload Relay 0.1-0.16A Setting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls Mini Overload Relay is designed for seamless integration with TC1-M6, TC1-M9, and TC1-M12 mini contactors. With a setting current range of 0.1 to 0.16A and a compact width of 45mm, this relay offers precision protection for your electrical systems. It features trip class 10A according to IEC60947-4-1/1S-13947-4-1 standards, with DIN rail or screw mounting options. The auxiliary trip contact ratings for AC15 (11) Duty and DC13 (11) Duty ensure reliable operation in varied voltage conditions.
Product Specifications
Additional Information Additional Information
DIN rail or screw mountable with the optional base TA1-M09641 NO + 1 NC Potential free contactsTrip class 10A according to IEC60947-4-1/1S-13947-4-1Ambient/Manual reset site selectableTrip Free design
Alternating Current Ac15 11 Duty Alternating Current Ac15 11 Dut
0.3 A
Direct Current Dc13 11 Duty Direct Current Dc13 11 Duty Auxiliar
0.14 A
Note Note
Values are the ratings of NO contact under auto reset mode
Specifications Setting Current Range
0.1 to 0.16 A
Specifications Small Width
45 mm
