Shamrock Controls Mini Overload Relay - 1.6 to 2.5 A Setting
Shamrock Controls Mini Overload Relay - 1.6 to 2.5 A Setting
SKU:REL-ce1a3d
Compact and reliable Mini Overload Relay with 1.6 to 2.5 A setting current range. Ideal for mini contactors. DIN or screw mountable.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Shamrock Controls Mini Overload Relay - 1.6 to 2.5 A Setting
$45.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls Mini Overload Relay - 1.6 to 2.5 A Setting
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

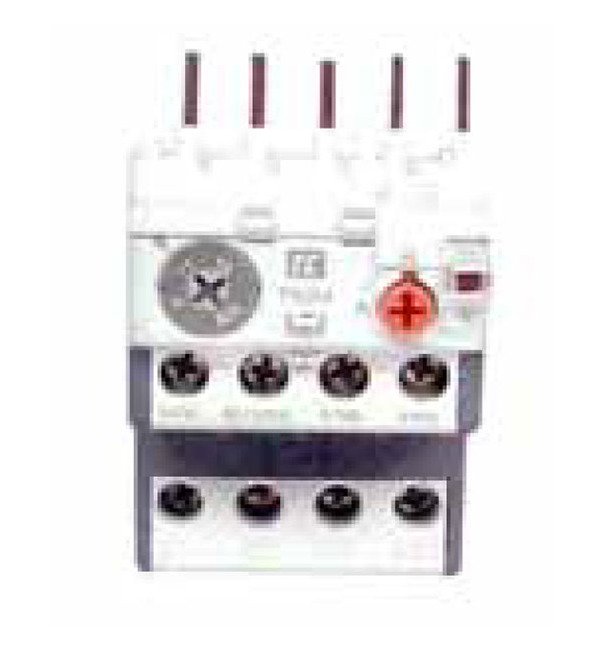

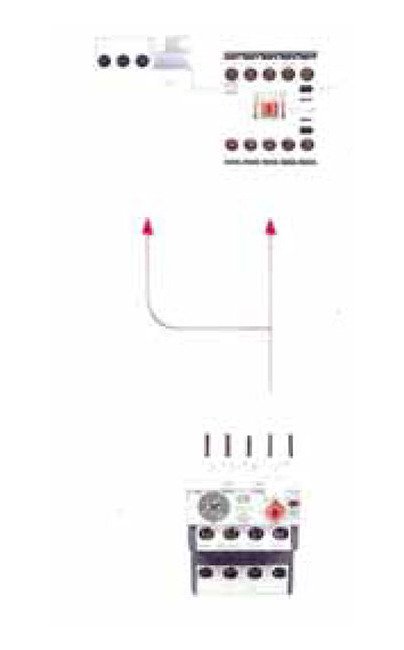

The Shamrock Controls Mini Overload Relay offers a compact design with a setting current range of 1.6 to 2.5 A, compatible for direct mounting on TC1-M6, TC1-M9, and TC1-M12 mini contactors. With screw clamp connections and a small width of 45 mm, this relay provides dependable overload protection. It features auxiliary trip contacts with precise current ratings for both AC and DC applications. The DIN rail or screw mountable design, along with the trip class 10A compliance with IEC standards, ensures reliable performance and quick reset options.
Product Specifications
Additional Information Additional Information
DIN rail or screw mountable with the optional base TA1-M09641 NO + 1 NC Potential free contactsTrip class 10A according to IEC60947-4-1/1S-13947-4-1Ambient/Manual reset site selectableTrip Free design
Alternating Current Ac15 11 Duty Alternating Current Ac15 11 Dut
0.3 A
Direct Current Dc13 11 Duty Direct Current Dc13 11 Duty Auxiliar
0.14 A
Note Note
Values are the ratings of NO contact under auto reset mode
Specifications Setting Current Range
1.6 to 2.5 A
Specifications Small Width
45 mm
