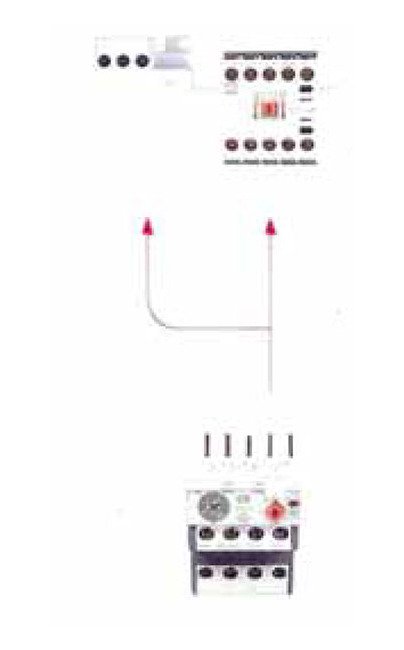

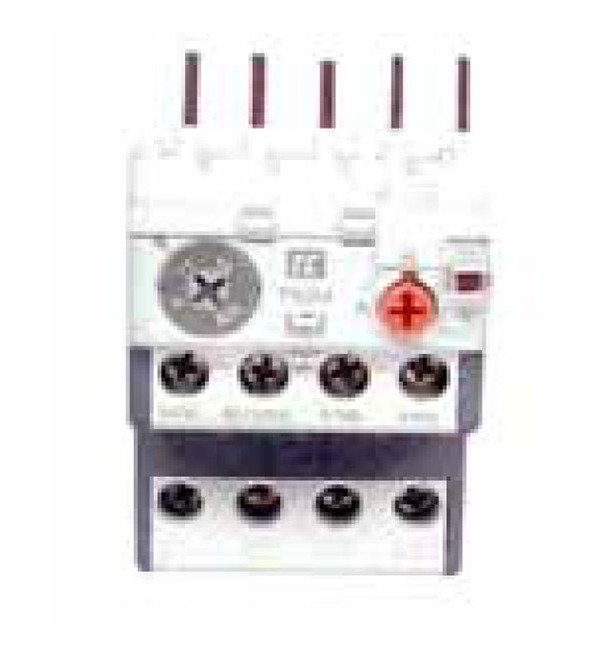

The Shamrock Controls 1 to 1.6 Ampere Setting Current Range Mini Overload Relay is tailored for seamless direct mounting on TC1-M6, TC1-M9, TC1-M12 mini contactors. With a small width of 45mm, this relay offers a setting current range ideal for protecting your electrical systems efficiently. It features a DIN rail or screw mountable design with TA1-M09641 optional base for NO + 1 NC potential free contacts and trip class 10A compliance according to IEC60947-4-1/1S-13947-4-1 standards. The trip-free design with ambient/manual reset site selection makes it a versatile and reliable choice for your industrial or institutional needs.
Product Specifications
Additional Information Additional Information
DIN rail or screw mountable with the optional base TA1-M09641 NO + 1 NC Potential free contactsTrip class 10A according to IEC60947-4-1/1S-13947-4-1Ambient/Manual reset site selectableTrip Free design
Alternating Current Ac15 11 Duty Alternating Current Ac15 11 Dut
0.3 A
Direct Current Dc13 11 Duty Direct Current Dc13 11 Duty Auxiliar
0.14 A
Note Note
Values are the ratings of NO contact under auto reset mode
Specifications Setting Current Range
1 to 1.6 A
Specifications Small Width
45 mm
