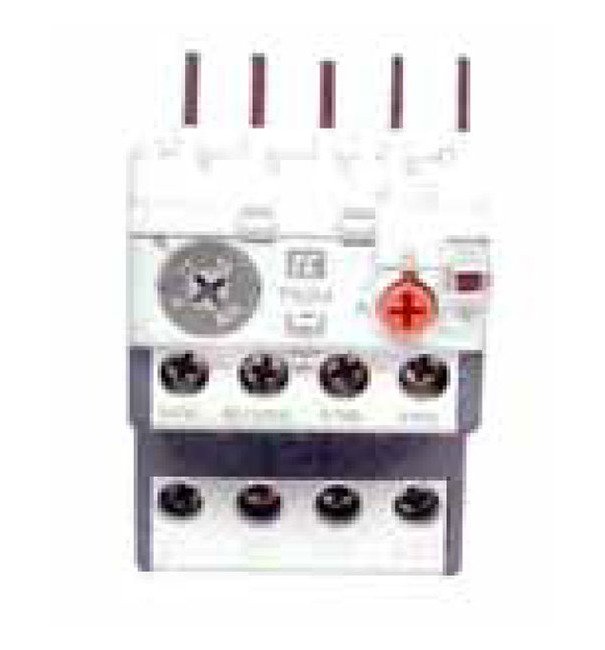

Shamrock Controls Mini Overload Relay - 2.5 to 4 Ampere Setting
Shamrock Controls Mini Overload Relay - 2.5 to 4 Ampere Setting
SKU:REL-b5c32d
Compact Shamrock Controls Mini Overload Relay with 2.5-4A current range for precise industrial protection.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Shamrock Controls Mini Overload Relay - 2.5 to 4 Ampere Setting
$59.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls Mini Overload Relay - 2.5 to 4 Ampere Setting
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

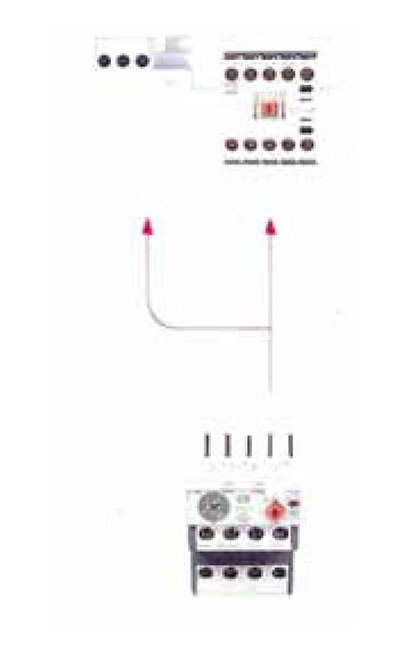

The Shamrock Controls Mini Overload Relay features a precise 2.5 to 4 Ampere setting current range, suitable for direct mounting on TC1-M6, TC1-M9, and TC1-M12 mini contactors. With a compact 45mm width, this relay offers reliable operation and easy installation. It comes with DIN rail or screw mount options using the optional base TA1-M09641, providing NO + 1 NC potential free contacts and a trip class of 10A compliant with IEC60947-4-1/1S-13947-4-1 standards. The ambient/manual reset site selectable design ensures flexibility and convenience, making it an ideal choice for various industrial applications.
Product Specifications
Additional Information Additional Information
DIN rail or screw mountable with the optional base TA1-M09641 NO + 1 NC Potential free contactsTrip class 10A according to IEC60947-4-1/1S-13947-4-1Ambient/Manual reset site selectableTrip Free design
Alternating Current Ac15 11 Duty Alternating Current Ac15 11 Dut
0.3 A
Direct Current Dc13 11 Duty Direct Current Dc13 11 Duty Auxiliar
0.14 A
Note Note
Values are the ratings of NO contact under auto reset mode
Specifications Setting Current Range
2.5 to 4 A
Specifications Small Width
45 mm
