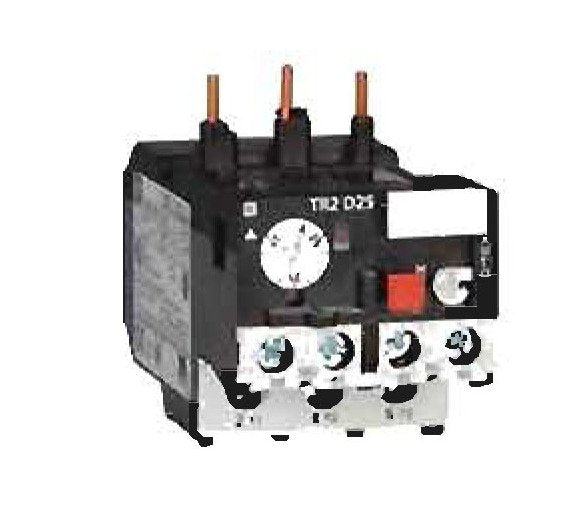

Shamrock Controls T and F Range Overload Relay, 17-25A Setting
Shamrock Controls T and F Range Overload Relay, 17-25A Setting
SKU:REL-86221d
Shamrock Controls T and F Range Overload Relay, 17-25A Setting. High-quality, Class 10 protection with CSA, IEC, and UL approvals.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Shamrock Controls T and F Range Overload Relay, 17-25A Setting
$49.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls T and F Range Overload Relay, 17-25A Setting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls T and F Range Overload Relay with a setting range of 17 to 25 Ampere (A) is a Class 10 relay that offers reliable protection with a tripping class of 10. Featuring approvals from CSA, IEC, and UL, this relay meets BSEN60947, IEC60947-1, and other international standards, ensuring high-quality performance. With a power range from 5.5 kW to 18.5 kW and a variety of protective features, this relay is ideal for industrial environments requiring precision and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Auxiliary Contact Charactericstics Coil Of Controlled Contactors
600 V·A
Auxiliary Contact Charactericstics Conventional Thermal Current
5 A
Auxiliary Contact Charactericstics Flexible Cable Without Cable
1/2.5 mm²
Auxiliary Contact Charactericstics Flexible Cable With Cable End
1/2.5 mm²
Auxiliary Contact Charactericstics Maximum Consumption Of Operat
220 V | 380 V
Auxiliary Contact Charactericstics Short Circuit Protection Powe
45 W
Auxiliary Contact Charactericstics Solid Cable Without Cable End
1/2.5 mm²
Auxiliary Contact Charactericstics Tightening Torque 1 Or 2 Cond
1.85 N·m
Electrical Charactericstics Of Power Circuit Connecting To Screw
Maximum Canadian Standards Association (CSA) | Minimum Canadian Standards Association (CSA)
Electrical Charactericstics Of Power Circuit Connection To Sprin
Maximum Canadian Standards Association (CSA) | Minimum Canadian Standards Association (CSA)
Electrical Charactericstics Of Power Circuit Depending On Model
17 to 70 A
Electrical Charactericstics Of Power Circuit Flexible Cable With
4/35 mm²
Electrical Charactericstics Of Power Circuit Frequency Limits Of
0 to 400 Hz
Electrical Charactericstics Of Power Circuit Rated Impulse Withs
6 kV
Electrical Charactericstics Of Power Circuit Rated Insulation Vo
690 V
Electrical Charactericstics Of Power Circuit Rated Operating Vol
600 V
Electrical Charactericstics Of Power Circuit Solid Cable Without
4/35 mm²
Electrical Charactericstics Of Power Circuit Tightening Torque 1
9 N·m
Electrical Charactericstics Of Power Circuit Tripping Class
10
Environment Ambient Air Operating Without Derating Temperature A
-25 to 60 ºC
Environment Ambient Air Storage Temperature Around The Device
-60 to 70 ºC
Environment Approvals
Canadian Standards Association (CSA) | International Electrotechnical Commission (IEC) | Underwriters' Laboratories (UL)
Environment Conforming To Standards
BSEN60947 | IEC60947-1 | IEC60947-4-1 | NFCEN 60947-4-1 | VDE0660
Environment Degree Of Protection Conforming To Vde 0106
Protection Against Direct Finger Contact Ingress Protection (IP2X)
Environment Dielectric Strength At 50 Hertz Hz Frequency Conform
6 kV
Environment Impulse Withstand Voltage Conforming To Internationa
6 kV
Environment Maximum Ambient Air Operating Temperature Around The
70 ºC
Environment Minimum Ambient Air Operating Temperature Around The
-40 ºC
Environment Permissible Acceleration Shock Resistance Conforming
11 ms | 15 g
Environment Protective Treatment Conforming To International Ele
TH
Note Note
Protected shrouds for main poles or power poles to be ordered separately for LR1 Relays
Specifications Back Up Fuse Rating Em
25 A
Specifications Power At 220 Volt V
5.5 kW
Specifications Power At 380 Volt V
11 kW
Specifications Power At 415 Volt V
11 kW
Specifications Power At 440 Volt V
11 kW
Specifications Power At 660 Volt V
18.5 kW
