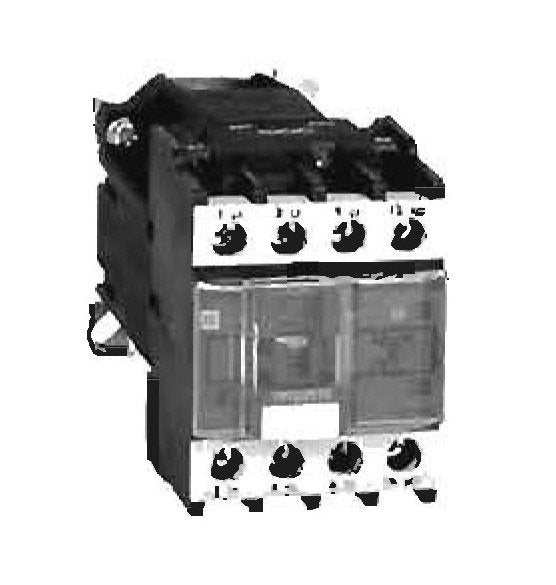

Shamrock Controls T-Range 4 Pole Contactor
Shamrock Controls T-Range 4 Pole Contactor
SKU:DPC-095177
Reliable 25A 4 Pole Contactor with Direct Current Coil, meets international standards
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Shamrock Controls T-Range 4 Pole Contactor
$59.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls T-Range 4 Pole Contactor
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls T-Range 4 Pole Contactor with Direct Current Operating Coil is a robust and reliable solution for both consumer and institutional needs. With a Maximum Inductive Alternating Current of 25A, it ensures efficient power management. This contacor conforms to BSEN60947, IEC60947, UL, and other international standards, making it a trusted choice for various applications.
Product Specifications
Accessories Accessories
Item #: TA9-D2569Item Name: Power Connectors Wire Sets for Reversing ContactorsItem #: LA9DD9978Item Name: Mechanical Interlocks Horizontally MountedItem #: ELA9DD9978Item Name: Electromechanical Interlocks Horizontally MountedItem #: TX4-D4-XXSpare Coils Direct Current (DC)Item #: TA9AMOV880EItem Name: Coil SuppressorDescription: Variator (AC/DC) Clip-on mounting for 9-95A ContactorVoltage Ratings: 24-48 V AC/DCItem #: TA9AMOV98DUItem Name: Coil SuppressorDescription: Variator (AC/DC) Clip-on mounting for 9-95A ContactorVoltage Ratings: 110-240 V AC/DCItem #: TA9RC98DEItem Name: Coil SuppressorDescription: RC Circuit (AC )Clip-on mounting for 9-95A ContactorVoltage Ratings: 24-48 V ACItem #: TA9RC98DUItem Name: Coil SuppressorDescription: RC Circuit (AC )Clip-on mounting for 9-95A ContactorVoltage Ratings: 110-240 V ACItem #: TA9RC98DNItem Name: Coil SuppressorDescription: RC Circuit (AC )Clip-on mounting for 9-95A ContactorVoltage Ratings: 380-440 V AC
Control Circuit Characteristics Average Consumption At 20 Degree
11 V·A
Control Circuit Characteristics Average Operating Time At Rated
8 to 14 ms
Control Circuit Characteristics Dropout Temperature 0 55 Degree
0.1 to 0.25 Uc
Control Circuit Characteristics Maximum Operating Rate At Ambien
3600 cycles
Control Circuit Characteristics Mechanical Life Rated Control Ci
25 V
Control Circuit Characteristics Operational Control Voltage For
0.7 to 1.25 Uc
Control Circuit Characteristics Rated Control Circuit Voltage
12 to 660 V
Dimensions Depth D
130 mm
Dimensions Dimension C
130 mm
Dimensions Dimension D Ta1
163 mm
Dimensions Dimension G
40 mm
Dimensions Height
84 mm
Dimensions Minimum Electrical Clearance D
10 mm
Dimensions Width
56 mm
Integral Auxillary Contact Characteristics Rated Operational Vol
0 to 660 V
Integral Auxillary Contact Characteristics Rated Thermal Current
10 A
Pole Characteristics Ambient Air Storage Temperature
-60 to +80 ºC
Pole Characteristics Approvals
Canadian Standards Association (CSA) | Underwriters' Laboratories (UL)
Pole Characteristics Around The Device Operating Temperature
-5 to +55 ºC
Pole Characteristics Around The Device Permissible Temperature
-40 to +70 ºC
Pole Characteristics Auxiliary Contacts Normally Closed Nc
4
Pole Characteristics Average Impedance Per Pole At 50 Hertz Hz F
2 mΩ
Pole Characteristics Maximum Power Rating At Single Phase 120 Vo
2 hp
Pole Characteristics Maximum Power Rating At Single Phase 230 Vo
3 hp
Pole Characteristics Maximum Power Rating At Three Phase 200 Vol
5 hp
Pole Characteristics Maximum Power Rating At Three Phase 230 Vol
7.5 hp
Pole Characteristics Maximum Power Rating At Three Phase 480 Vol
15 hp
Pole Characteristics Maximum Power Rating At Three Phase 600 Vol
20 hp
Pole Characteristics Number Of Power Poles
3
Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo
1.25 W
Pole Characteristics Rated Breaking Capacity 220 To 440 Volt V
450 A
Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V
180 A
Pole Characteristics Rated Breaking Capacity At 500 Voltage V
400 A
Pole Characteristics Rated Insulation Voltage
1000 V
Pole Characteristics Rated Making Capacity Conforming To Interna
450 A
