Shape Seal Series Pouch Makers
Shape Seal Series Pouch Makers
SKU:SHA-766d85
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Shape Seal Series Pouch Makers
$49.99
Quantity: 1
Claim Your Seller Account
Shape Seal Series Pouch Makers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

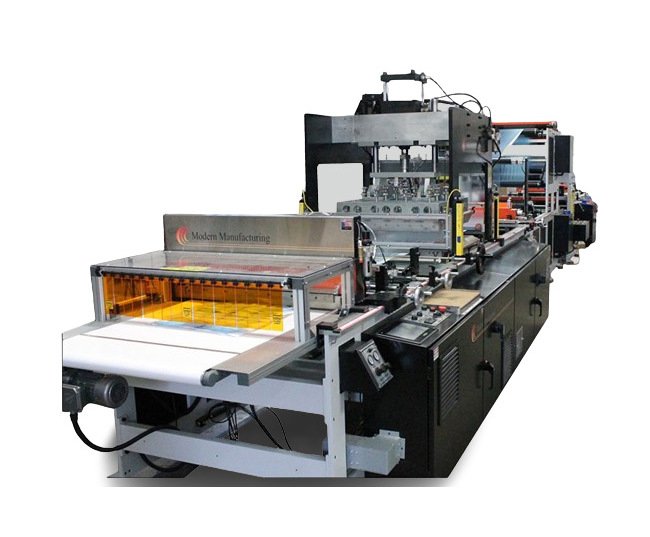

Quick and Easy Set-Up"State-of-the-Art" intuitive controls, make the Modern pouch machine unique to the flexible packaging industry. Our pouch machinery offers the flexibility to add or subtract features as needed. With reduced set-ups and low scrap rates this machine becomes a work horse for your pouch making needs. The high speed servo model offers a productive solution for medical pouch applications. Now you can get high speed output with verifiable product quality.
Product Specifications
Features

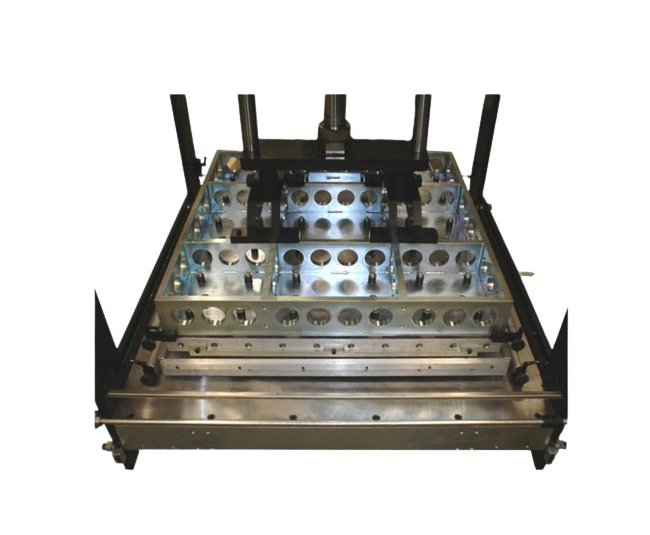

Pneumatic or Servo Actuated Models availableProprietary Heat Sealing Platen DesignMedical Pouch ApplicationsOptional Data Collection System for Validation
Note
Made in The USA
Optional Configurations

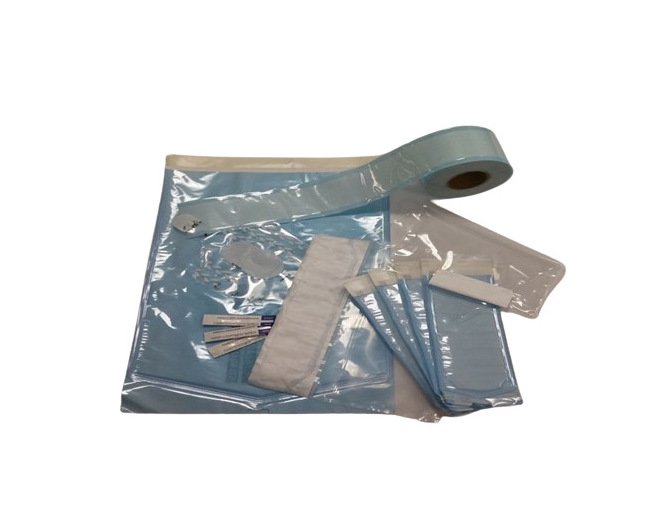

Self-seal medical peel pouches single or two lane, with or without thumb notches.
Standard Configurations
Heat-seal medical peel pouches single or two lane, with or without thumb notches.
Technical Specs Alternative Current Ac Voltage
208 V | 220 V
Technical Specs Current
150 A
Technical Specs Maximum Lay Flat Web Width
24 in | 30 in | 600 mm | 762 mm
Technical Specs Maximum Pouch Height
24 in | 30 in | 600 mm | 762 mm
Technical Specs Maximum Pouch Width
18 in | 457 mm
Technical Specs Maximum Roll Diameter
30 in | 762 mm
Technical Specs Mechanical Speed
200 cycles/min
Technical Specs Minimum Pouch Width
3 in | 76 mm
Technical Specs Servo Actuated Machine Air Pressure At 90 Pounds
15 ft³/min
Technical Specs Shaped Seal Pouch Making Machine
24 in | 30 in | 600 mm | 762 mm
Technical Specs Standard Core Size
3 in | 76 mm
