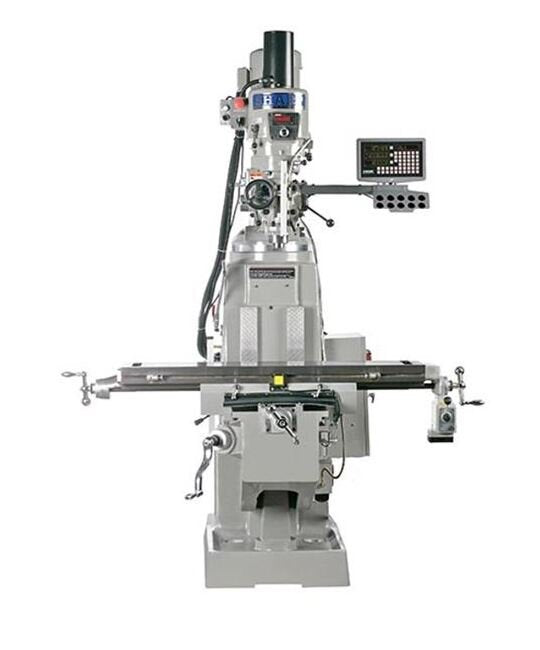

Sharp Industries 10 x 50 Vertical Knee Mill with 3 Axis DRO
Sharp Industries 10 x 50 Vertical Knee Mill with 3 Axis DRO
SKU:MIL-f912b0
High-precision Sharp Industries 10x50 Vertical Knee Mill for industrial applications, featuring 3 Axis DRO & sturdy construction.
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
Sharp Industries 10 x 50 Vertical Knee Mill with 3 Axis DRO
$24,999.00
Quantity: 1
Claim Your Seller Account
Sharp Industries 10 x 50 Vertical Knee Mill with 3 Axis DRO
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sharp Industries 10 x 50 Vertical Knee Mill is a premium milling machine designed for precision and durability. It features a 3 Axis DRO for accurate measurements and control. With a 3 hp spindle motor and a range of speeds from 60 to 4500 rpm, this mill is perfect for demanding jobs. The machine is built with hardened box ways, Turcite coated slideways, and super-precision bearings for minimum spindle runout. Its innovative design includes a swiveling head, power feed table, and a variety of optional accessories. Ideal for industrial and government applications requiring high reliability and precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Head:Premium Packaged TMV comes with 3 Axis DRO (Quill, Table & Saddle) standard to meet your every needs.Premium Packaged TMV comes with Power Feed Table standard making your operation easier to manage.To dissipate heat in the 3 HP motor driven head, a pair of high output fans is installed. This allows the machine to work demanding jobs for extended periods without damaging the motor, belts and bearings. A unique SHARP feature.The Motor Shaft and Vari drive pulleys are dynamically balanced then chromed. This allows a vibration free milling even at high speeds. Since the Vari-speed drive system is operated by sliding the Vari Drive pulley up and down the motor shaft. The motor shaft is therefore chrome-plated, and has an oil channel that is fed by a grease fitting on the lower end for self-lubricating purpose. This ensures the sliding motion is trouble free at all times. A unique SHARP feature.The motor shaft that drives the pulley and the spindle is subject to a lot of lateral stress. A roller bearing is installed for the lower support of the motor shaft. A unique SHARP feature.Besides swiveling 90 degree side to side, the head can also swivel up and down by virtue of a knuckle joint design. The new design developed by Sharp uses 6 bolts, 3 each side, that fitted into a circular T-slot milled at the inside of the over arm and secured by nuts from the outside. It secured the head tightly and offered high accuracy in milling operations.A matched pair of super-precision ABEC-7 angular contact bearings supports the spindle. The quill is CNC-ground to a mirror finish, and then chromed to fit the housing. Together, they insure spindle run out of no more than 0.0004â TIR- the best in the industry.Column, Table and KneeHardened and ground box ways on column and saddle.Turcite coated slideways for better resistance to wear and retention of lube oil.Table and saddle backlash is controlled by a double-nut design that keeps the feed screw in contact with a pair of bronze nut at all times. A unique SHARP feature.Hardened leadscrews on table and saddle for better resistance to wear.The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw, eliminating endplay for precisely controlled lateral movement.Instead of hand scraping the top of the knee ways for oil retention, the matching underside of the saddle is hand-scraped. This extra step avoids having chips and dirt embedded in the knee ways and damages the sliding area."Bridgeport-style" vertical knee mill
Optional Accessories Optional Accessories
Call for Pricing.Coolant system with chip panRiser block (4"or 7") Right angle milling attachmentAuto lube systemHalogen work lightMilling vise Clamping kitWhy DVS head? High reliability with fewer moving parts than regular vari speed headDynamic brakeLow voltage controlLarge Digital rpm displayFully enclosed display unitDependable Inverter Drive SystemMachine can run on single phase or 3 phase electricitySafety device prevents machine from self-starting after power failure or after emergency stop being pushed
Standard Accessories Standard Accessories
Hardened and ground box waysPower feed tableDigital Readout system, 3 AxisPower drawbarFront and rear rubber way coverOne-shot lube system Tool Kit
Technical Specs Accuracy
0.0001
Technical Specs Brands
Sharp-Industries
Technical Specs Floor Area Width X Depth
70 x 75 in
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilt Up And Down Each Way
45 º
Technical Specs Height
91.78 in
Technical Specs Net Weight
3000 lb
Technical Specs Quill Feed
0.0015 | 0.003 | 0.005
Technical Specs Quill Travel
5 in
Technical Specs Ram Travel
18.5 in
Technical Specs Saddle Travel Y Axis
16.3 in
Technical Specs Spindle Gage Line To Table Top
5.375 to 16.9 in
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
60 to 4500 rpm
Technical Specs Table
TMV-K
Technical Specs Table Travel X Axis
33 in
Technical Specs Taper
40
Technical Specs T Slot Number
3 in | 5/8 in
Technical Specs Voltage
220 to 440 V
Technical Specs Working Surface
10 x 50 in
