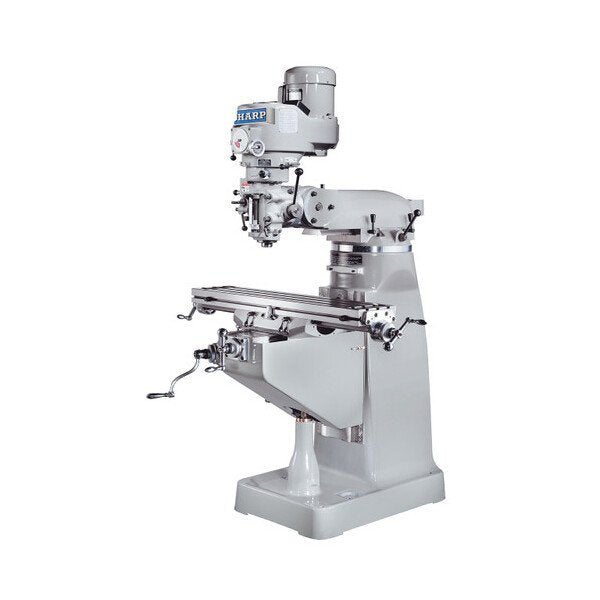

Sharp Industries Vertical Knee Mill 9 X 42 Inch (LMV-42)
Sharp Industries Vertical Knee Mill 9 X 42 Inch (LMV-42)
SKU:MIL-69c3d7
Experience precision and reliability with the Sharp Industries Vertical Knee Mill 9 X 42 Inch - LMV-42. Perfect for accurate milling operations.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Sharp Industries Vertical Knee Mill 9 X 42 Inch (LMV-42)
$18,999.00
Quantity: 1
Claim Your Seller Account
Sharp Industries Vertical Knee Mill 9 X 42 Inch (LMV-42)
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sharp Industries Vertical Knee Mill LMV-42 is a precision-engineered milling machine designed to deliver exceptional performance and durability. With a sturdy table working surface of 9 x 42 inches, 3 HP spindle motor power, and a wide range of spindle speeds from 60 to 4500 RPM, this machine ensures efficient and accurate milling operations. Featuring compliance with federal procurement standards, this mill is ideal for institutional buyers seeking reliability and precision.
Product Specifications
Technical Specs Brands
Sharp-Industries
Technical Specs Floor Area Width X Depth
7 x 6.5 in
Technical Specs Head Swivel
360 º
Technical Specs Head Swivel Left Hand Lh In Degrees
45 º
Technical Specs Head Swivel Right Hand Rh In Degrees
45 º
Technical Specs Head Tilting Up And Down In Degrees
45 º
Technical Specs Knee Travel Z Axis
16 in
Technical Specs Net Weight
2400 lb
Technical Specs Quill Feed Ipr
0.0015 in | 0.003 in | 0.006 in
Technical Specs Quill Travel
5 in
Technical Specs Ram Travel
12 in
Technical Specs Saddle Travel Y Axis
12 in
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
60 to 4500 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle To Column Maximum
18 1/2 in
Technical Specs Spindle To Column Minimum
6 3/4 in
Technical Specs Spindle To Nose Table
2 1/8 to 18 in
Technical Specs Table
LMV
Technical Specs Table Travel X Axis
30 in
Technical Specs Table T Slot Size
3 in | 5/8 in
Technical Specs Wiring Voltage At 60 Hertz Hz
220 to 440 V
Technical Specs Working Surface
9 x 42 in
