SHCV Series 4.8mm High Pressure Check Valve
SHCV Series 4.8mm High Pressure Check Valve
SKU:SHC-e1e482
Precision-engineered 4.8mm High Pressure Check Valve with 6,000 psig rating and premium materials for reliable performance in high-pressure systems.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SHCV Series 4.8mm High Pressure Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
SHCV Series 4.8mm High Pressure Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

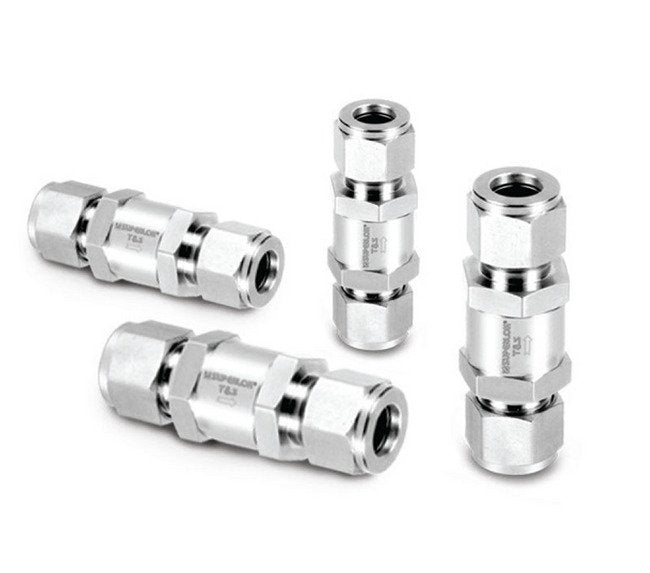

The SHCV Series 4.8mm High Pressure Check Valve is designed for precision performance in high-pressure systems. With a pressure rating up to 6,000 psig and various end connections available, this valve ensures reliable operation and superior sealing with materials like EPDM, FKM, and NBR. Made from high-quality 316 stainless steel or brass, each valve undergoes rigorous testing to ensure consistent cracking pressure and sealing performance. Ideal for government and institutional applications requiring durability and efficiency.
Product Specifications
Features Features
Pressure rating up to 6,000 psig(413 bar) at 100 ºF (37 ºC)Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar)Variety of end connections316 stainless steel body material as standard.Each and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

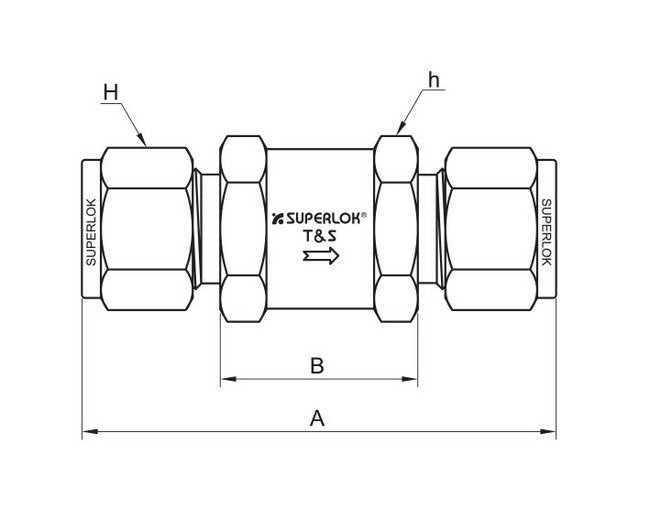

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
61.7 mm
Technical Specs Dimension B
26.4 mm
Technical Specs Dimension H
14 mm
Technical Specs End Connections
6 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
0.67
Technical Specs Orifice Size
4.8 mm
Technical Specs Pressure Rating
6000 psig | 413 bar
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR)
Technical Specs Temperature Rating With Standard Fluorocarbon Fk
375 ºF | 190 ºC
