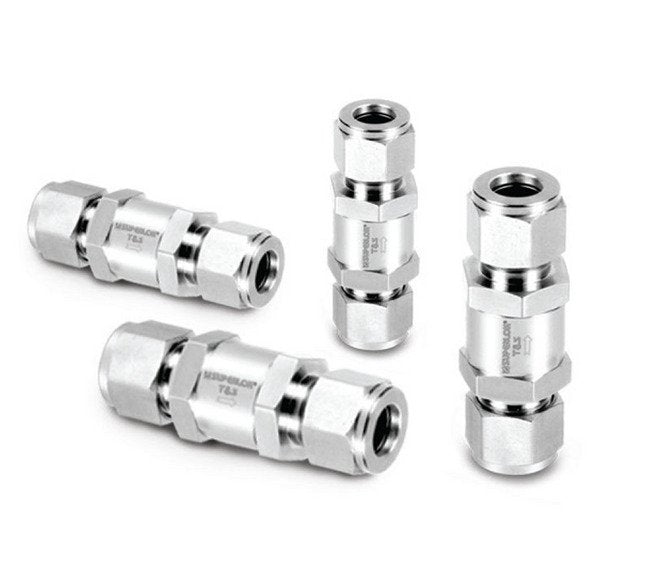

SHCV Series High Pressure Check Valve - 4.8mm Orifice, 1/8in SUPERLOK® End Connections
SHCV Series High Pressure Check Valve - 4.8mm Orifice, 1/8in SUPERLOK® End Connections
SKU:SHC-7e3fea
Ensure precision flow control with the SHCV Series High Pressure Check Valve - 4.8mm Orifice, 1/8in SUPERLOK® End Connections.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SHCV Series High Pressure Check Valve - 4.8mm Orifice, 1/8in SUPERLOK® End Connections
$89.99
Quantity: 1
Claim Your Seller Account
SHCV Series High Pressure Check Valve - 4.8mm Orifice, 1/8in SUPERLOK® End Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SHCV Series High Pressure Check Valve features a 4.8mm orifice size and 1/8in SUPERLOK® end connections, ensuring precise flow control and secure sealing. With a pressure rating of up to 6000 psig, this valve guarantees reliability under high-pressure conditions. Constructed with 316 stainless steel and available seal materials like EPDM, FKM, and NBR, it offers exceptional durability and compatibility. Each valve undergoes rigorous factory testing to ensure consistent performance, making it an ideal choice for critical industrial applications.
Product Specifications
Features Features
Pressure rating up to 6,000 psig(413 bar) at 100 ºF (37 ºC)Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar)Variety of end connections316 stainless steel body material as standard.Each and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

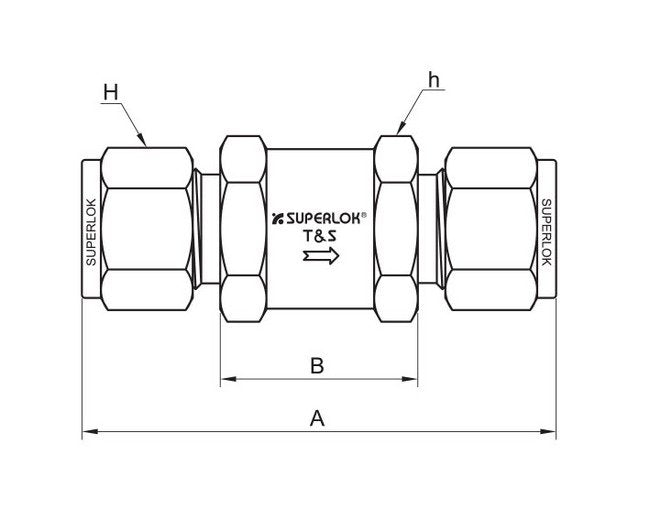

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
57.7 mm
Technical Specs Dimension B
26.4 mm
Technical Specs Dimension H
11.1 mm | 9/16 in
Technical Specs End Connections
1/8 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
0.67
Technical Specs Orifice Size
4.8 mm
Technical Specs Pressure Rating
6000 psig | 413 bar
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR)
Technical Specs Temperature Rating With Standard Fluorocarbon Fk
375 ºF | 190 ºC
