SHCV2 Series High Pressure Check Valve
SHCV2 Series High Pressure Check Valve
SKU:SHC-5845b4
High-performance SHCV2 Series Valve for precise flow control and durable high-pressure operation. Tested for quality and reliability.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
SHCV2 Series High Pressure Check Valve
$149.99
Quantity: 1
Claim Your Seller Account
SHCV2 Series High Pressure Check Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

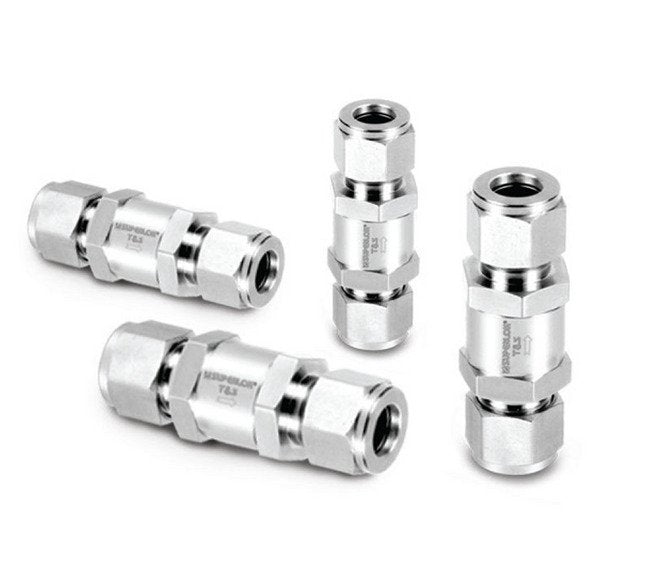

The SHCV2 Series High Pressure Check Valve is a robust solution designed for applications requiring precise flow control and dependable performance. With an orifice size of 7.8mm, pressure rating up to 6,000 psig, and various end connections, this valve ensures reliable operation under high-pressure conditions. Constructed with 316 Stainless Steel and available seal material options like EPDM, FKM, and NBR, it offers durability and compatibility with a range of media. Tested for cracking pressure and reseal performance, this valve meets stringent quality standards, making it an ideal choice for both consumer and institutional buyers.
Product Specifications
Features Features
Pressure rating up to 6,000 psig(413 bar) at 100 ºF (37 ºC)Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar)Variety of end connections316 stainless steel body material as standard.Each and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

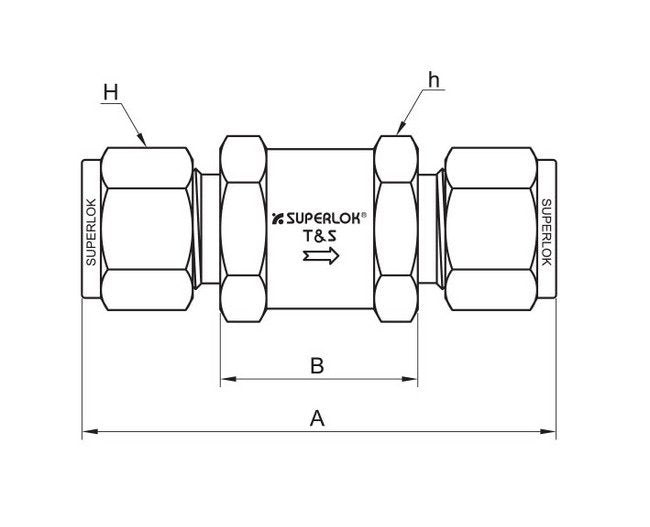

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
71.1 mm
Technical Specs Dimension B
31.2 mm
Technical Specs Dimension H
19 mm
Technical Specs End Connections
10 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
1.80
Technical Specs Orifice Size
7.8 mm
Technical Specs Pressure Rating
6000 psig | 413 bar
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR)
Technical Specs Temperature Rating With Standard Fluorocarbon Fk
375 ºF | 190 ºC
