SHCV3 15mm Orifice High Pressure Check Valve
SHCV3 15mm Orifice High Pressure Check Valve
SKU:SHC-a6a005
Premium SHCV3 15mm Orifice High Pressure Check Valve for reliable high-pressure applications. Durable, leak-proof design.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SHCV3 15mm Orifice High Pressure Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
SHCV3 15mm Orifice High Pressure Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

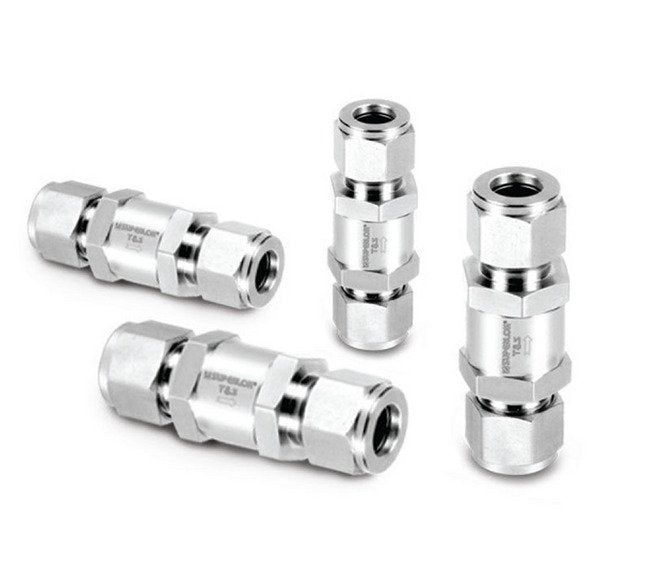

The SHCV3 Series 15mm Orifice High Pressure Check Valve with 22mm SUPERLOK® End Connections is precision-engineered for durability and performance. With a pressure rating of 5000 psig and a flow coefficient of 4.70, this valve ensures reliable operation in high-pressure applications. Constructed with 316 Stainless Steel and available seal materials such as EPDM and FKM, it offers exceptional resistance to harsh environments. Tested for cracking pressure and reseal performance, this valve guarantees efficiency and safety, making it ideal for industrial and government procurement needs.
Product Specifications
Features Features
Pressure rating up to 6,000 psig(413 bar) at 100 ºF (37 ºC)Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar)Variety of end connections316 stainless steel body material as standard.Each and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

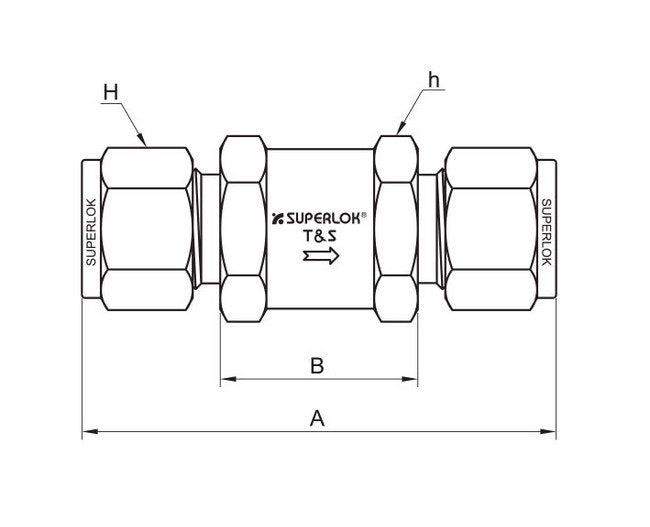

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
88.4 mm
Technical Specs Dimension B
45.5 mm
Technical Specs Dimension H
32 mm
Technical Specs End Connections
22 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
4.70
Technical Specs Orifice Size
15.0 mm
Technical Specs Pressure Rating
5000 psig | 344 bar
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR)
Technical Specs Temperature Rating With Standard Fluorocarbon Fk
375 ºF | 190 ºC
