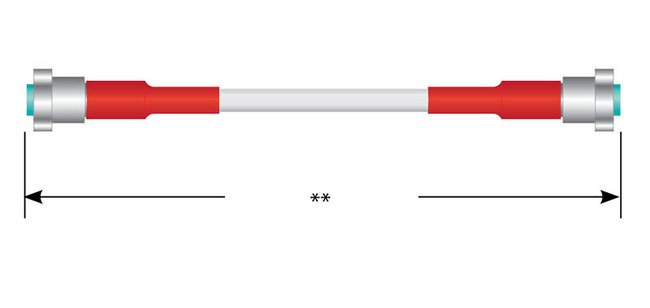

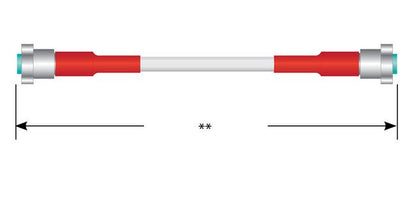

Shielded Double-Ended 610 Series Cable Assembly
Shielded Double-Ended 610 Series Cable Assembly
SKU:HIG-48b639
High voltage shielded cable assembly with altitude sealing, current rating of 1 Amp, and durable construction.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Shielded Double-Ended 610 Series Cable Assembly
$39.99
Quantity: 1
Claim Your Seller Account
Shielded Double-Ended 610 Series Cable Assembly
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shielded Double-Ended 610 Series Cable Assembly is specifically designed for high voltage applications, with a voltage rating of 5 kVDC, altitude capability up to 70,000 ft., and an operating temperature range of -55 to 125°C. Featuring a larger coupling nut for enhanced mating operations, this cable assembly offers internal seals for altitude sealing and prevention of cross mating in multiple circuit applications. With a current rating of 1 Amp and gold-plated brass/stainless steel coupling nut finish, it ensures reliable performance and durability in airborne and demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated | Passivated
Body Properties Coupling Nut Material
Brass | Stainless Steel
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Hex Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 610 receptacles only
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
610
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Shielded
