Shielded High Voltage Microflex Cable
Shielded High Voltage Microflex Cable
SKU:HIG-526f78
High Voltage Microflex Cable with shielded design, PFA insulation, and silicone rubber coating. Ideal for reliable high-voltage transmission in varied environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Shielded High Voltage Microflex Cable
$29.99
Quantity: 1
Claim Your Seller Account
Shielded High Voltage Microflex Cable
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

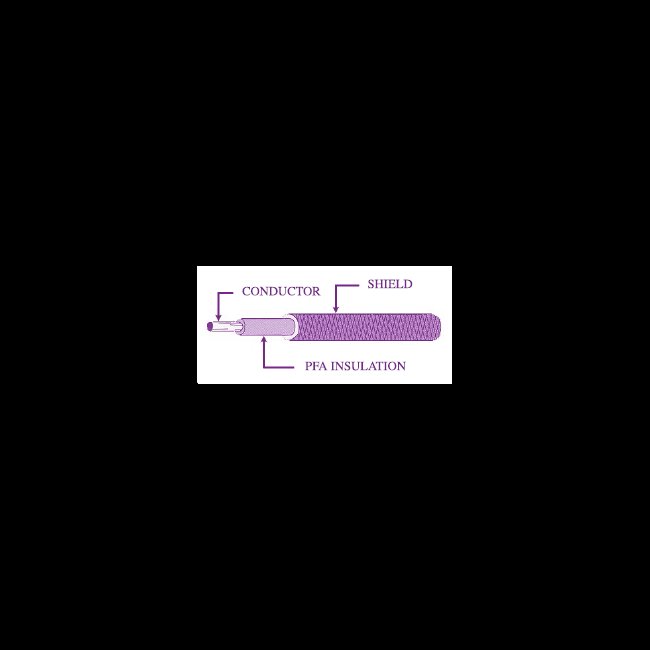

The Shielded High Voltage Microflex Cable from the High Voltage Micro Flex™ Wire and Cable line offers exceptional performance and flexibility. Featuring a shielded design with PFA insulation, this cable is available with a silicone rubber coating for added durability. With a conductor gauge of 22 AWG, silver-plated copper conductor, and a voltage rating of 6 kVDC, this cable ensures reliable high-voltage transmission. Operating temperature ranges from -55 to 125°C, making it suitable for diverse environments. Whether for consumer or institutional needs, this cable delivers superior dielectric properties and robust construction.
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-5142
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Options Optional Color
Black | Blue | Brown | Green | Grey | Orange | Red | Violet | White | Yellow
Specifications Conductor Diameter
0.030 in | 0.76 mm
Specifications Conductor Gauge
22 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
65/40
Specifications Default Color
Natural
Specifications Diameter Over Insulator
0.041 in | 1.04 mm
Specifications Diameter Over Shield
0.053 in | 1.35 mm
Specifications Insulator Material
PFA
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.053 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
6 kVDC
Specifications Wire Type
Shielded
