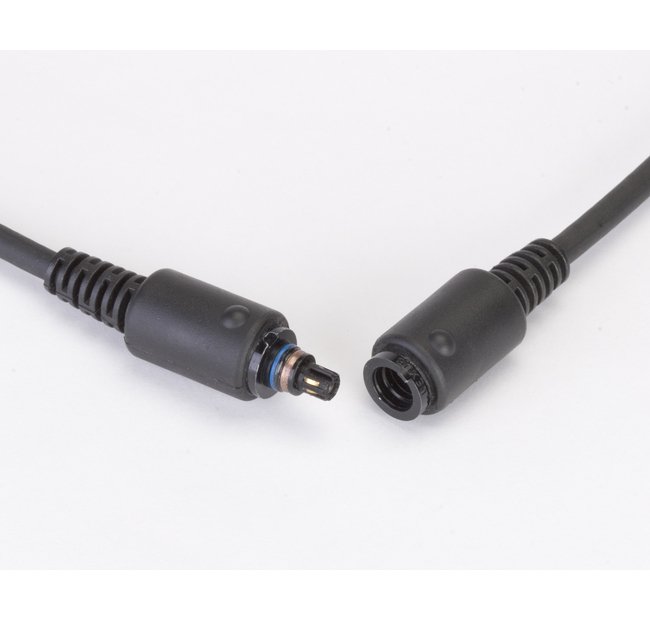

Shielded Miniature 10-Pin Waterproof Breakaway Connector
Shielded Miniature 10-Pin Waterproof Breakaway Connector
SKU:7AN-8b8b17
Ruggedized Shielded Miniature Connector with Gold-Plated Contacts, Ideal for Harsh Environments
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Shielded Miniature 10-Pin Waterproof Breakaway Connector
$29.99
Quantity: 1
Claim Your Seller Account
Shielded Miniature 10-Pin Waterproof Breakaway Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

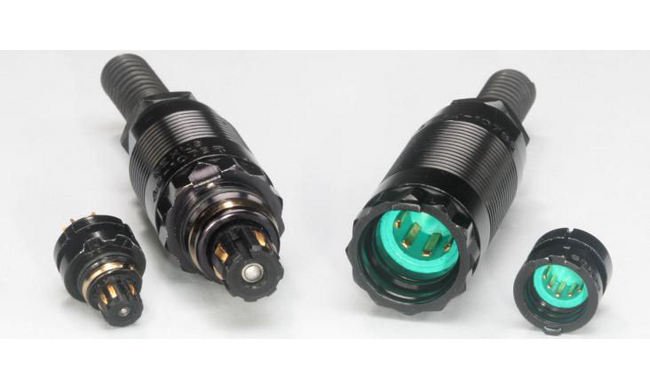

The Shielded Miniature 10-Pin Waterproof Breakaway Connector is a ruggedized solution designed for commercial, military, and institutional applications. Featuring gold-plated BeCu contacts, black anodize or black chrome plating, and thermoset plastic insert material, this connector ensures reliable performance even in harsh environments. With axial push-pull mating and disengagement forces of 8 to 12 lbs, this connector is built for durability and longevity. Meeting strict industry standards, including a temperature range of -55 to 85°C and a contact current capacity of 3A, this connector is the ideal choice for demanding connectivity needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
10
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated BeCu
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Overmold
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
