Shielded Miniature Breakaway Connector
Shielded Miniature Breakaway Connector
SKU:7AN-def4e3
Ruggedized Shielded Miniature Breakaway Connector with 10 conductors, gold-plated contacts, and axial push-pull mating for reliable performance in tough conditions.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Shielded Miniature Breakaway Connector
$45.99
Quantity: 1
Claim Your Seller Account
Shielded Miniature Breakaway Connector
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

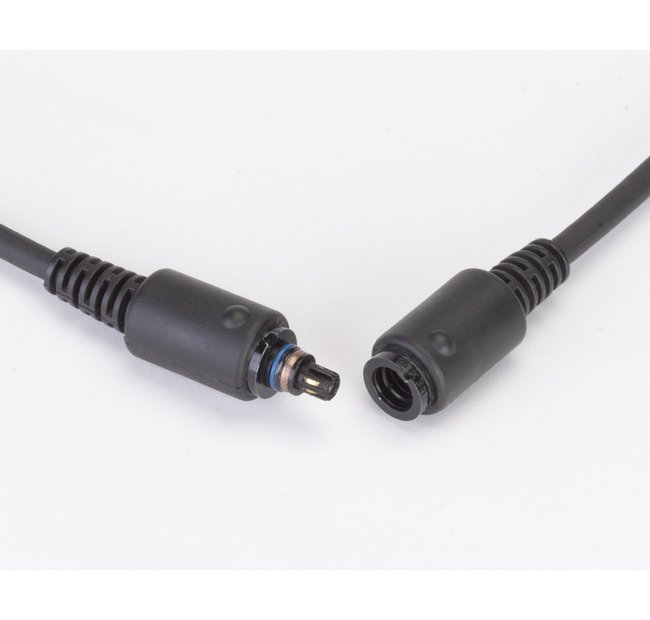

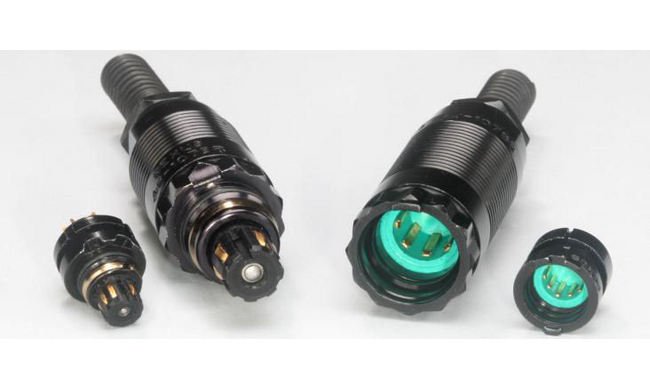

The Shielded Miniature Breakaway Connector is specially designed for ruggedized commercial and military applications. With 10 conductors, gold-plated brass contacts, and axial push-pull mating, this connector ensures reliable performance in harsh environments. Its aluminum shell with black anodize or black chrome plating, thermoset plastic insert, and overmold rear accessory provide durability, while meeting specifications for temperature range (-55 to 85°C), contact current capacity (3A), and engagement force (≤14 lb). With a mating cycle of 5000 and low contact resistance (≤150 mV), this connector excels in demanding settings.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
10
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated Brass
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Overmold
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
