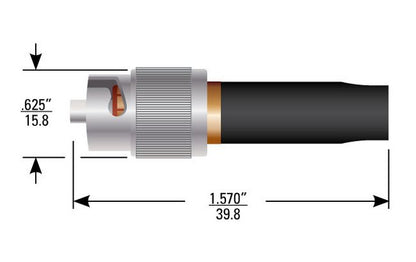

Shielded Plug Kit for 311 Series Coaxial Connectors (6.5 and 15kVDC)
Shielded Plug Kit for 311 Series Coaxial Connectors (6.5 and 15kVDC)
SKU:HIG-259cef
High-voltage Shielded Plug Kit for 311 Series Coaxial Connectors. Sealed for reduced pressure operation with secure grounding and polarization features.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Shielded Plug Kit for 311 Series Coaxial Connectors (6.5 and 15kVDC)
$89.99
Quantity: 1
Claim Your Seller Account
Shielded Plug Kit for 311 Series Coaxial Connectors (6.5 and 15kVDC)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shielded Plug Kit in the 311 Series is designed for high-voltage applications, featuring seals for reduced pressure operation and a shell-to-shell grounding spring finger shield. With a hooded female socket and bayonet coupling for easy polarization, this kit ensures secure connections at altitudes up to 70,000 ft. It boasts a 10 Amp current rating, Brass construction with Nickel finish, and BeCu contact material with Gold finish, meeting stringent operational and durability requirements.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Cable Preparation 0
Reynolds Industries Inc. - High Voltage Connectors, High Voltage Cable Assemblies, High Voltage Wire, High Voltage Cable, High Voltage Capacitors _uacct = "UA-425769-1"; urchinTracker(); CLICK HERE FOR A PHOTOGRAPHIC "HOW TO" Series 311 (P/N 167-7624) Step 1 Cut cable to length, clean and square. Slip boot and crimp sleeve over cable. Strip outer jacket to dimension shown. Trim exposed braid to dimension. Trim inner insulation to dimension. No nicked or severed strands allowed. Pot tin dip inner conductor using SN60 solder in accordance with J-STD-006. Remove all flux. Step 2 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. No solder buildup allowed on contact outer diameter. Completed solder joint must have a continuous fillet of solder between the inner conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030". Flair braid by moving cable core in a circular motion. Step 3 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. Completed solder joint must have a continuous fillet of solder between the conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030". Download this page as a PDF for best print quality.
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Bayonet Coupling Nut Finish
Nickel
Specifications Bayonet Coupling Nut Material
Brass
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates all Series 311 Cond. 3 receptacles and adaptors.
Specifications Operating Temperature
-40 to 85 ºC

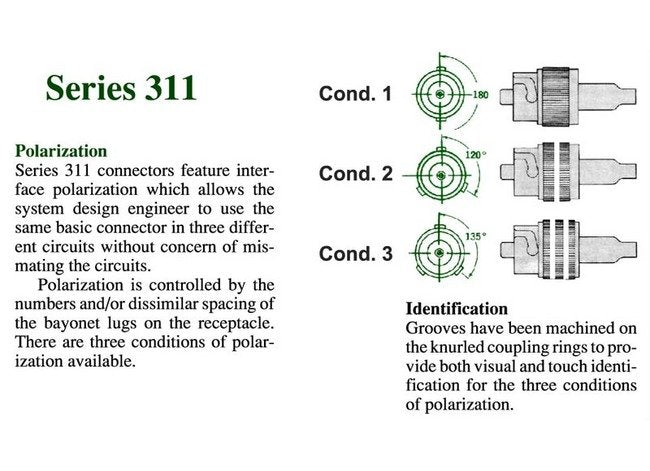

Specifications Polarization
Cond. 3
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
311
Specifications Spring Finger Grounding
Yes
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
TBD
Specifications Voltage Rating
15 kVDC
