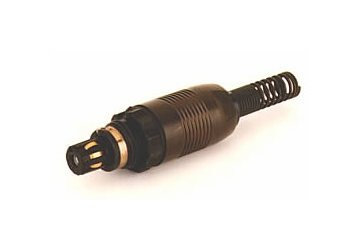

Shielded Waterproof Plug with 7 Conductors
Shielded Waterproof Plug with 7 Conductors
SKU:7AN-f15c0a
Ruggedized waterproof plug with 7 conductors, gold-plated BeCu contacts, and watertight design for demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Shielded Waterproof Plug with 7 Conductors
$29.99
Quantity: 1
Claim Your Seller Account
Shielded Waterproof Plug with 7 Conductors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shielded Waterproof Plug with 7 conductors is a ruggedized commercial/military-grade connector designed for severe environments. Featuring gold-plated BeCu contacts and black anodize aluminum shell material, this plug offers watertight functionality up to 6 feet deep. With an axial push-pull mating motion and an engagement force of ≤ 14 lb, this plug ensures secure connections in challenging conditions. Ideal for C4I Systems, military vehicles, and commercial aircraft, this plug meets rigorous standards for reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
C4I Systems Military Vehicles Commercial Aircraft Telecommunications Equipment Missiles and Ordnance Medical Equipment Commercial / Industrial Equipment
Features 0
Plug and Jack breakaway connectors designed to function in severe environments Watertight in up to 6 feet of water Molded-in wiping-action contacts provide self-cleaning feature and eliminate issues with pin/socket open contacts Designed for multiple cable diameters Miniature versions are 50% smaller than standard connectors while maintaining many of the same performance characteristics
Options 0
7- or 10-pin (miniature version only) contacts Solder-type contacts or insulation-piercing contacts Wire strain relief or over-molded versions available for all plugs and jacks Panel mount versions are available for both front- and rear-mount panels Shielding is available in all connector choices All standard connector options also available in miniaturized versions
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated BeCu
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Wire Strain Relief
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
