SHIELDTITE® - EMI/EMP Flexible Conduit - 1in, High-Level Shielding

Name: SHIELDTITE® - EMI/EMP Flexible Conduit - 1in, High-Level Shielding
Brand: Anamet Electrical, Inc.
SKU: LIQ-d0a868
Price: 99.99 USD
Availability: OutOfStock

SKU:LIQ-d0a868

High-level EMI/EMP shielding conduit with bronze core and PVC jacket. Meets Mil-STD-1310H. For RFI/EMI shielding needs.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

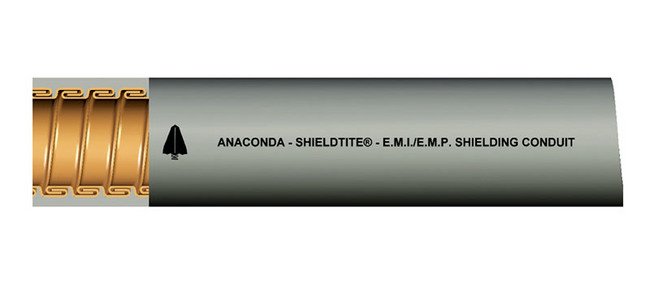

The SHIELDTITE® EMI/EMP Flexible Conduit is a top choice for high-level shielding needs. Constructed with a bronze core and a smooth PVC jacket, this conduit meets Mil-STD-1310H for EMI and EMP shielding effectiveness of 81 - 119 dB at 1kHz to 1GHz. Suitable for a wide temperature range (-51ºF to +221ºF), it offers IP 66/67 Ingress Protection. Ideal for high-level RFI and EMI shielding applications, this conduit ensures protection and reliability.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -51ºF to + 221ºF (-46ºC to +105ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

4.0 in | 101.6 mm

Specifications Approx Weight Per 100 Ft

56 lbs | 25.40 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78832 | 78834 | EMS-13

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.041 to 1.066 in | 26.441 to 27.076 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE®
