SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit

Name: SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-a847dd
Price: 39.99 USD
Availability: OutOfStock

SKU:LIQ-a847dd

High-level shielding SHIELDTITE® EMI/EMP conduit with Mil-STD-1310H compliance, ideal for sensitive conductors.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

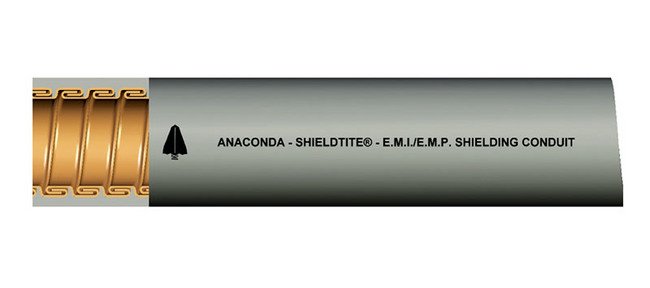

The SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit is designed for high-level RFI and EMI shielding, meeting stringent Mil-STD-1310H standards with shielding effectiveness of 81-119 dB. Constructed with a bronze core and a thermoplastic PVC jacket, this conduit offers superior protection for sensitive conductors within a wide temperature range of -51ºF to +221ºF (-46ºC to +105ºC). With smooth interior surfaces and IP 67 rating when paired with approved connectors, it ensures easy installation and reliable performance. Available in custom lengths to suit various industrial applications.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -51ºF to + 221ºF (-46ºC to +105ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

24 lbs | 10.89 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78801 | EMS-10

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.485 to 0.505 in | 12.319 to 12.827 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

0.690 to 0.710 in | 17.526 to 18.034 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE®

SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit
