SHIELDTITE® EMI/EMP Liquid Tight Flexible Metal Conduit

Name: SHIELDTITE® EMI/EMP Liquid Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-0e38d5
Price: 99.99 USD
Availability: OutOfStock

SKU:LIQ-0e38d5

High-level shielding liquid-tight conduit for superior RFI/EMI protection, meets Mil-STD-1310H, temperature range -51ºF to +221ºF.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

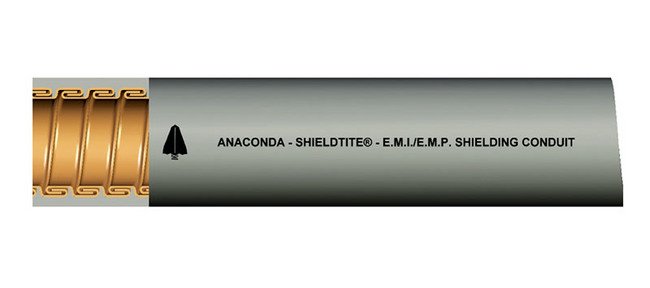

The SHIELDTITE® EMI/EMP Liquid Tight Flexible Metal Conduit is designed for high-level shielding, meeting Mil-STD-1310H for EMI and EMP shielding effectiveness of 81 - 119 dB at 1kHz to 1GHz. Constructed with a bronze core and a thermoplastic PVC jacket, this conduit offers superior protection against RFI and EMI, with a temperature range of -51ºF to +221ºF. It comes in various industry-standard sizes and can be custom-cut to fit specific requirements. Installation is quick and easy with standard liquid-tight connectors, providing IP 67 rating when used with approved connectors.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -51ºF to + 221ºF (-46ºC to +105ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

9.5 in | 241.3 mm

Specifications Approx Weight Per 100 Ft

125 lbs | 56.70 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78862 | 78864 | EMS-16

Specifications Electrical Trade Size

2 in | 53 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

2.020 to 2.045 in | 51.308 to 51.943 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

2.340 to 2.375 in | 59.436 to 60.325 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE®

SHIELDTITE® EMI/EMP Liquid Tight Flexible Metal Conduit
