SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit

Name: SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-24970e
Price: 199.99 USD
Availability: OutOfStock

SKU:LIQ-24970e

Premium SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit for high-level shielding applications. Meets Mil-STD-1310H standards. Ideal for RFI and EMI shielding.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

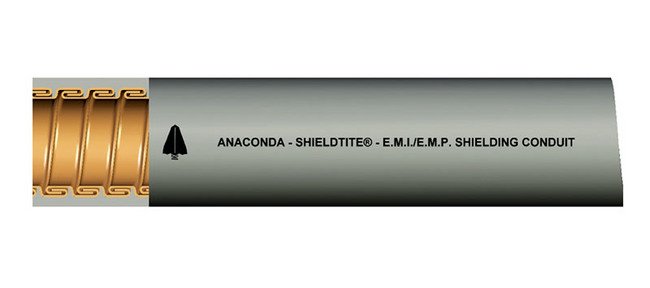

The SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit is a premium solution designed for high-level shielding applications. Constructed with a bronze core and a Thermoplastic PVC jacket, this conduit meets stringent Mil-STD-1310H standards for EMI and EMP shielding effectiveness ranging from 81 to 119 dB at 1 Kilohertz to 1 Gigahertz. With an IP 66/67 Ingress Protection rating and a temperature range of -51ºF to +221ºF (-46ºC to 105ºC), it ensures reliable performance in diverse environments. The smooth interior surface safeguards sensitive conductors, making it ideal for high-level RFI and EMI shielding applications. Customizable lengths and easy installation with standard liquid-tight connectors enhance versatility and practicality.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -51ºF to + 221ºF (-46ºC to +105ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

12 in | 304.8 mm

Specifications Approx Weight Per 100 Ft

165 lbs | 74.84 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78872 | EMS-17

Specifications Electrical Trade Size

2-1/2 in | 63 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

2.480 to 2.505 in | 62.992 to 63.627 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

2.840 to 2.875 in | 72.136 to 73.025 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE®

SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit
