SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit

Name: SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-50c8cb
Price: 129.99 USD
Availability: OutOfStock

SKU:LIQ-50c8cb

High-level shielding SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit for unmatched RFI/EMI protection, Mil-STD-1310H compliant.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

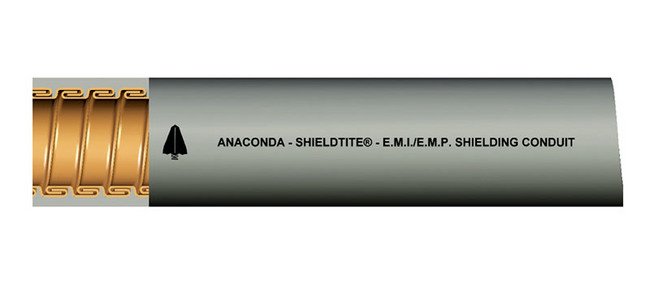

The SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit is engineered with high-level bronze core shielding for superior protection against electromagnetic interference and electromagnetic pulses. Meeting Mil-STD-1310H standards, this conduit offers shielding effectiveness of 81 - 119 dB across 1 Kilohertz to 1 Gigahertz frequencies. With a temperature range of -51ºF to +221ºF and a smooth jacketed exterior, it ensures durability and reliability. Suitable for High Level RFI and EMI Shielding applications, this conduit provides exceptional performance and peace of mind.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

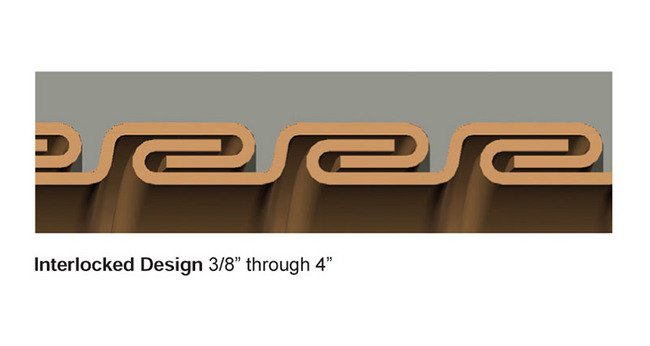

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -51ºF to + 221ºF (-46ºC to +105ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

7.0 in | 177.8 mm

Specifications Approx Weight Per 100 Ft

96 lbs | 43.545 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78852 | 78854 | EMS-15

Specifications Electrical Trade Size

1-1/2 in | 41 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.575 to 1.600 in | 40.005 to 40.64 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

1.865 to 1.900 in | 47.371 to 48.26 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE®

SHIELDTITE® EMI/EMP Liquid-Tight Flexible Metal Conduit
