SHIELDTITE® High-Level Shielding LFMC Conduit
SHIELDTITE® High-Level Shielding LFMC Conduit
SKU:LIQ-9b2aa9
Premium SHIELDTITE® LFMC Conduit for high-level RFI and EMI shielding. Meets Mil-STD-1310H. Temperature range: -51ºF to +221ºF.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SHIELDTITE® High-Level Shielding LFMC Conduit
$129.99
Quantity: 1
Claim Your Seller Account
SHIELDTITE® High-Level Shielding LFMC Conduit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

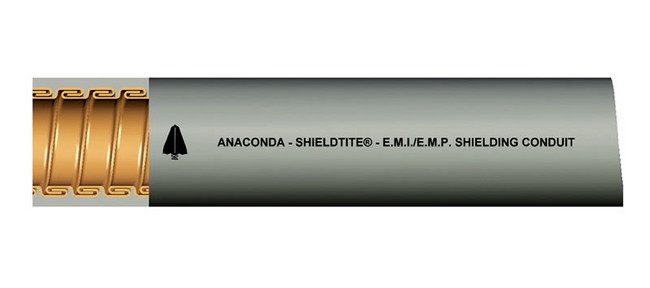

The SHIELDTITE® High-Level Shielding Liquid-Tight Flexible Metal Conduit (LFMC) is a superior solution for high-level RFI and EMI shielding needs. Constructed with a bronze core for exceptional shielding effectiveness of 81 - 119 dB from 1 Kilohertz to 1 Gigahertz, this conduit meets stringent Mil-STD-1310H standards. With a temperature range of -51ºF to +221ºF (-46ºC to +105ºC), it ensures reliable performance in various environments. The smooth PVC jacket and custom-cut lengths make installation easy and efficient, safeguarding sensitive conductors while providing liquid-tight protection.
Product Specifications
Application 0
For High Level RFI and EMI ShieldingTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -51ºF to + 221ºF (-46ºC to +105ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.
Specifications Approx Inside Bend Radius
4.0 in | 101.6 mm
Specifications Approx Weight Per 100 Ft
42 lbs | 19.05 kg
Specifications Color
GRAY
Specifications Core Material
Bronze
Specifications Cross Reference
78822 | 78824 | EMS-12
Specifications Electrical Trade Size
3/4 in | 21 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.815 to 0.835 in | 20.701 to 21.209 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
Custom
Specifications Note
Available in Random Lengths
Specifications Outside Diameter
1.030 to 1.050 in | 26.162 to 26.670 mm
Specifications Packaging
Contact Anamet
Specifications Type
SHIELDTITE®
