SHIELDTITE® Z1 EMI/EMP LFMC - High Level Shielding Conduit
SHIELDTITE® Z1 EMI/EMP LFMC - High Level Shielding Conduit
SKU:LIQ-7bb238
Premium SHIELDTITE® Z1 EMI/EMP LFMC with high-level shielding effectiveness, wide temperature range, and Mil-STD-1310H compliance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
SHIELDTITE® Z1 EMI/EMP LFMC - High Level Shielding Conduit
$149.99
Quantity: 1
Claim Your Seller Account
SHIELDTITE® Z1 EMI/EMP LFMC - High Level Shielding Conduit
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

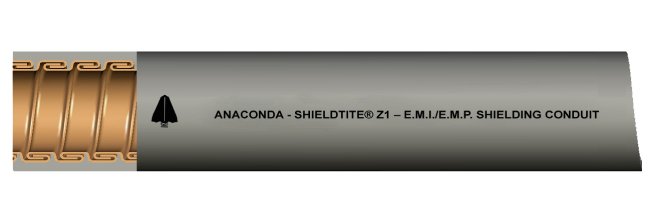

The SHIELDTITE® Z1 EMI/EMP LFMC is a premium liquid-tight flexible metal conduit designed to meet the rigorous requirements of high-level shielding. With a thermoplastic PVC jacket and a bronze core, this conduit offers superior protection against electromagnetic interference (EMI) and electromagnetic pulses (EMP), delivering shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for a wide temperature range from -40ºF to +176ºF (-40ºC to 80ºC), this conduit is ideal for applications requiring high-level RFI and EMI shielding. It meets Mil-STD-1310H and RoHS WEEE certifications, ensuring quality and compliance.
Product Specifications
Application 0
For High Level RFI and EMI ShieldingTemperature Range: -40ºF to +176ºF (-40ºC to +80ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -40ºF to + 176ºF (-40ºC to +80ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.
Specifications Approx Inside Bend Radius
4.5 in | 114.3 mm
Specifications Approx Weight Per 100 Ft
75 lbs | 34.02 kg
Specifications Color
GRAY
Specifications Core Material
Bronze
Specifications Cross Reference
78242 | 78244 | HFEMS-14
Specifications Electrical Trade Size
1-1/4 in | 35 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.370 to 1.395 in | 34.798 to 35.433 mm
Specifications Jacket Benefits
Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
Custom
Specifications Note
Available in Random Lengths
Specifications Outside Diameter
1.630 to 1.660 in | 41.402 to 42.164 mm
Specifications Packaging
Contact Anamet
Specifications Type
SHIELDTITE® Z1
