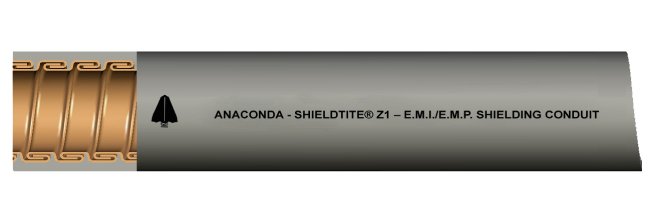

SHIELDTITE® Z1 - EMI/EMP Liquid-Tight Flexible Metal Conduit
SHIELDTITE® Z1 - EMI/EMP Liquid-Tight Flexible Metal Conduit
SKU:LIQ-60ddcb
High-level EMI/EMP shielding with bronze core, smooth cover, and zero halogen jacket. Meets Mil-STD-1310H. Easy to install and customize lengths.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
SHIELDTITE® Z1 - EMI/EMP Liquid-Tight Flexible Metal Conduit
$399.99
Quantity: 1
Claim Your Seller Account
SHIELDTITE® Z1 - EMI/EMP Liquid-Tight Flexible Metal Conduit
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SHIELDTITE® Z1 EMI/EMP Liquid-Tight Flexible Metal Conduit offers high-level shielding effectiveness, meeting Mil-STD-1310H standards with 81-119 dB protection from 1 KHz to 1 GHz. Constructed with a bronze core, this conduit ensures optimal protection for sensitive conductors in temperatures ranging from -40ºF to +176ºF. Its smooth cover and zero halogen, thermoplastic polyurethane jacket provide durability and flexibility, making it ideal for high-level RFI and EMI shielding applications. Compatible with standard liquid-tight connectors, it is easy to install and customizable in lengths to suit various needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
For High Level RFI and EMI ShieldingTemperature Range: -40ºF to +176ºF (-40ºC to +80ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -40ºF to + 176ºF (-40ºC to +80ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.
Specifications Approx Inside Bend Radius
17 in | 431.8 mm
Specifications Approx Weight Per 100 Ft
298 lbs | 135.17 kg
Specifications Color
GRAY
Specifications Core Material
Bronze
Specifications Cross Reference
78292 | HFEMS-19
Specifications Electrical Trade Size
4 in | 103 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
4.000 to 4.040 in | 101.600 to 102.616 mm
Specifications Jacket Benefits
Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
Custom
Specifications Note
Available in Random Lengths
Specifications Outside Diameter
4.460 to 4.500 in | 113.284 to 114.300 mm
Specifications Packaging
Contact Anamet
Specifications Type
SHIELDTITE® Z1
