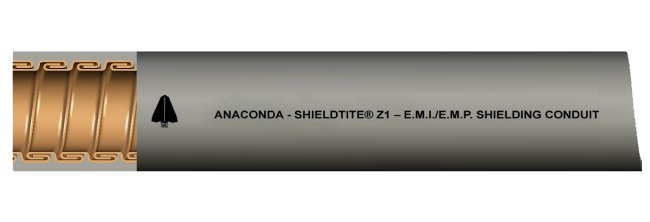

SHIELDTITE® Z1 - EMI/EMP Liquid-Tight Flexible Metal Conduit

Name: SHIELDTITE® Z1 - EMI/EMP Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-04cdc2
Price: 49.99 USD
Availability: OutOfStock

SKU:LIQ-04cdc2

Shield sensitive conductors with SHIELDTITE® Z1 Liquid-Tight Flexible Metal Conduit, meeting MIL-STD-1310H for high-level shielding effectiveness. IP 66/67 rated, zero halogen, and liquid-tight for durable use in -40ºF to +176ºF temperatures.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SHIELDTITE® Z1 Liquid-Tight Flexible Metal Conduit offers superior high-level shielding with a bronze core, meeting MIL-STD-1310H for EMI/EMP shielding effectiveness of 81 - 119 dB at 1kHz to 1GHz. Its Thermoplastic PVC jacket ensures durability in temperatures from -40ºF to +176ºF. IP 66/67 rated, zero halogen, and liquid-tight, this conduit is designed for High Level RFI and EMI shielding applications, safeguarding sensitive conductors in a smooth interior surface.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -40ºF to +176ºF (-40ºC to +80ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -40ºF to + 176ºF (-40ºC to +80ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

4.0 in | 101.6 mm

Specifications Approx Weight Per 100 Ft

56 lbs | 25.40 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78232 | 78234 | HFEMS-13

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.041 to 1.066 in | 26.441 to 27.076 mm

Specifications Jacket Benefits

Liquid Tight | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE® Z1

SHIELDTITE® Z1 - EMI/EMP Liquid-Tight Flexible Metal Conduit
