SHIELDTITE® Z1 - EMI/EMP Liquid-Tight Flexible Metal Conduit 2-1/2"

Name: SHIELDTITE® Z1 - EMI/EMP Liquid-Tight Flexible Metal Conduit 2-1/2"
Brand: Anamet Electrical, Inc.
SKU: LIQ-d58ccc
Price: 189.99 USD
Availability: OutOfStock

SKU:LIQ-d58ccc

High-level shielding conduit with bronze core for EMI/EMP compliance. Temperature range -40ºF to +176ºF. IP 66/67 rated.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

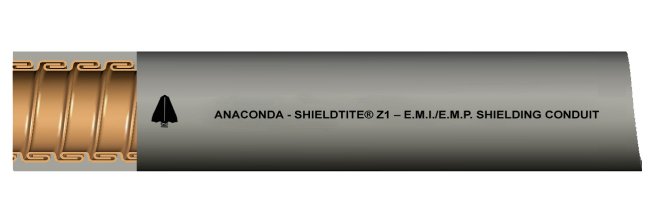

The SHIELDTITE® Z1 EMI/EMP Liquid-Tight Flexible Metal Conduit is designed for high-level shielding with a bronze core to meet strict EMI and EMP standards (Mil-STD-1310H). This conduit offers a smooth thermoplastic PVC jacket, suitable for a wide temperature range from -40ºF to +176ºF. With an IP 66/67 rating, it provides excellent protection for sensitive conductors and offers shielding effectiveness of 81 - 119 dB at 1KHz to 1GHz. Compliant with RoHS WEEE industry certifications and zero halogen for added safety, this conduit is ideal for applications requiring superior RFI and EMI shielding.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -40ºF to +176ºF (-40ºC to +80ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -40ºF to + 176ºF (-40ºC to +80ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

12 in | 304.8 mm

Specifications Approx Weight Per 100 Ft

165 lbs | 74.84 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78272 | HFEMS-17

Specifications Electrical Trade Size

2-1/2 in | 63 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

2.480 to 2.505 in | 62.992 to 63.627 mm

Specifications Jacket Benefits

Liquid Tight | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

2.840 to 2.875 in | 72.136 to 73.025 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE® Z1
