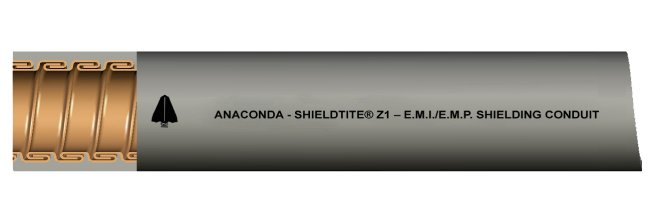

The SHIELDTITE® Z1 Liquid-Tight Flexible Metal Conduit offers top-tier shielding with a bronze core, meeting Mil-STD-1310H for EMI/EMP effectiveness of 81 - 119 dB. With a temperature range of -40ºF to +176ºF, this conduit ensures protection for sensitive conductors. Its smooth cover and zero halogen, gray thermoplastic jacket provide durability and flexibility. Perfect for High Level RFI and EMI Shielding applications, this conduit, available in custom lengths, guarantees reliable performance in diverse environments.
Product Specifications
Application 0
For High Level RFI and EMI ShieldingTemperature Range: -40ºF to +176ºF (-40ºC to +80ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -40ºF to + 176ºF (-40ºC to +80ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.
Specifications Approx Inside Bend Radius
4.0 in | 101.6 mm
Specifications Approx Weight Per 100 Ft
42 lbs | 19.05 kg
Specifications Color
GRAY
Specifications Core Material
Bronze
Specifications Cross Reference
78221 | 78224 | HFEMS-12
Specifications Electrical Trade Size
3/4 in | 21 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.815 to 0.835 in | 20.701 to 21.209 mm
Specifications Jacket Benefits
Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
Custom
Specifications Note
Available in Random Lengths
Specifications Outside Diameter
1.030 to 1.050 in | 26.162 to 26.670 mm
Specifications Packaging
Contact Anamet
Specifications Type
SHIELDTITE® Z1
