SHIELDTITE® Z1 - High Level Shielding LFMC
SHIELDTITE® Z1 - High Level Shielding LFMC
SKU:LIQ-afa40d
SHIELDTITE® Z1 - High Level Shielding LFMC with EMI/EMP Protection, IP 67 Rated, Custom Lengths Available
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
SHIELDTITE® Z1 - High Level Shielding LFMC
$99.99
Quantity: 1
Claim Your Seller Account
SHIELDTITE® Z1 - High Level Shielding LFMC
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

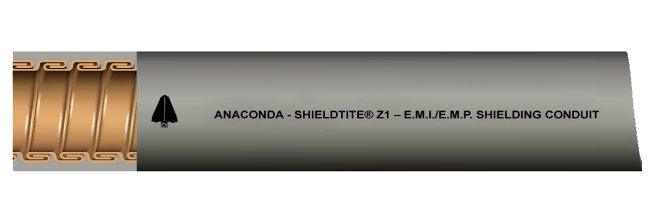

The SHIELDTITE® Z1 High Level Shielding Liquid-Tight Flexible Metal Conduit offers superior protection against EMI/EMP interference with a bronze core and smooth cover design. Meeting Mil-STD-1310H requirements, it provides shielding effectiveness of 81-119 dB from 1kHz to 1GHz. With an operating temperature range of -40ºF to +176ºF, this conduit is ideal for high-level RFI and EMI shielding applications. Available in custom lengths, it is easy to install with standard liquid-tight connectors and rated IP 67 when used with approved connectors.
Product Specifications
Application 0
For High Level RFI and EMI ShieldingTemperature Range: -40ºF to +176ºF (-40ºC to +80ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -40ºF to + 176ºF (-40ºC to +80ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.
Specifications Approx Inside Bend Radius
7.0 in | 177.8 mm
Specifications Approx Weight Per 100 Ft
96 lbs | 43.545 kg
Specifications Color
GRAY
Specifications Core Material
Bronze
Specifications Cross Reference
78252 | 78254 | HFEMS-15
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.575 to 1.600 in | 40.005 to 40.64 mm
Specifications Jacket Benefits
Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
Custom
Specifications Note
Available in Random Lengths
Specifications Outside Diameter
1.865 to 1.900 in | 47.371 to 48.26 mm
Specifications Packaging
Contact Anamet
Specifications Type
SHIELDTITE® Z1
