SHMEI 1/4 in Tube OD 45 Degree Male Elbow
SHMEI 1/4 in Tube OD 45 Degree Male Elbow
SKU:SHM-dfc5a4
Efficiently connect 1/4 in tubes to Female NPT threads with this durable 45° male elbow, featuring i-Fitting® technology for enhanced safety and productivity.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SHMEI 1/4 in Tube OD 45 Degree Male Elbow
$24.99
Quantity: 1
Claim Your Seller Account
SHMEI 1/4 in Tube OD 45 Degree Male Elbow
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

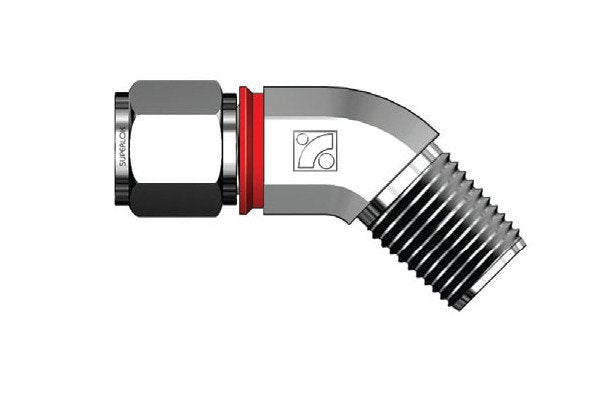

The SHMEI Series 1/4 Inch Tube OD 45 Degree Male Elbow is a precision-engineered fitting designed to connect fractional tubes with Female NPT threads. Crafted from high-quality materials like Alloy 625 and Stainless Steel, this male elbow ensures a secure and leak-free connection. Its innovative i-Fitting® design includes a built-in check ring for perfect compression, enhancing safety in high-pressure environments and streamlining installations. With dimensions compliant to industry standards, this male elbow offers reliability and efficiency for diverse applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

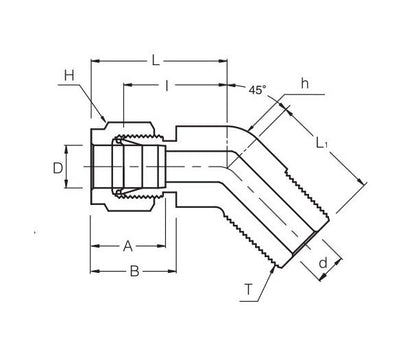

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

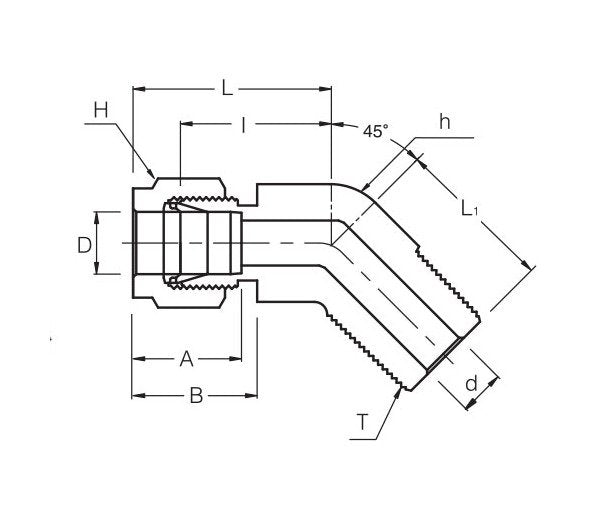

Technical Specs Angle
45 º
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
17.27 mm
Technical Specs Dimension L
24.63 mm
Technical Specs Dimension L1
16.51 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
