SHMEI Series 12mm Tube OD 45 Degree Male Elbow
SHMEI Series 12mm Tube OD 45 Degree Male Elbow
SKU:SHM-7247e8
Enhance connections with our SHMEI 12mm Tube OD 45 Degree Male Elbow for reliable and safe fittings in industrial environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SHMEI Series 12mm Tube OD 45 Degree Male Elbow
$29.99
Quantity: 1
Claim Your Seller Account
SHMEI Series 12mm Tube OD 45 Degree Male Elbow
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

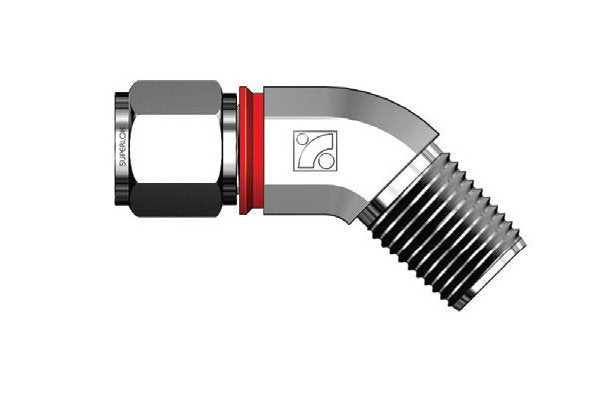

The SHMEI Series 12mm Tube Outside Diameter (D) and 3/8 Inch Thread Size (T) 45 Degree Male Elbow facilitates secure connections between metric tubes and female ISO tapered threads. Crafted from high-quality materials like Alloy 625, Alloy 825, and Stainless Steel, this male elbow ensures reliability in diverse applications. The innovative i-Fitting® design offers enhanced safety, productivity, and cost savings by preventing over- or under-tightening issues, making it ideal for high-pressure and chemical environments. Experience improved efficiency and exceptional performance with this industry-leading solution.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

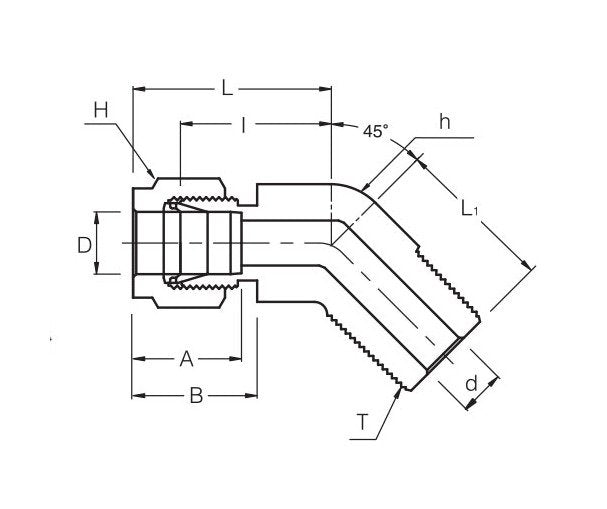

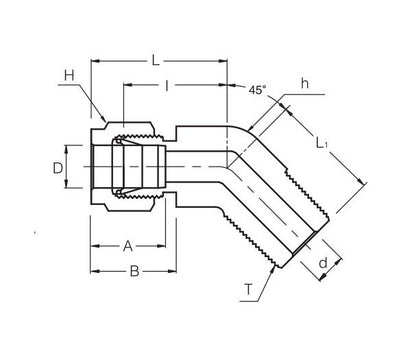

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Angle
45 º
Technical Specs Connection Type
Male
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
21.8 mm
Technical Specs Dimension I
21.8 mm
Technical Specs Dimension L
32.00 mm
Technical Specs Dimension L1
24.1 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
