SHMEI Series 45 Degree Male Elbow - 1/2in Tube D, 3/8in Thread T
SHMEI Series 45 Degree Male Elbow - 1/2in Tube D, 3/8in Thread T
SKU:SHM-39bac7
Premium SHMEI Series 45° Male Elbow for secure fractional tube to female NPT thread connections. Features i-Fitting® components for precise tightening & increased safety.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SHMEI Series 45 Degree Male Elbow - 1/2in Tube D, 3/8in Thread T
$29.99
Quantity: 1
Claim Your Seller Account
SHMEI Series 45 Degree Male Elbow - 1/2in Tube D, 3/8in Thread T
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

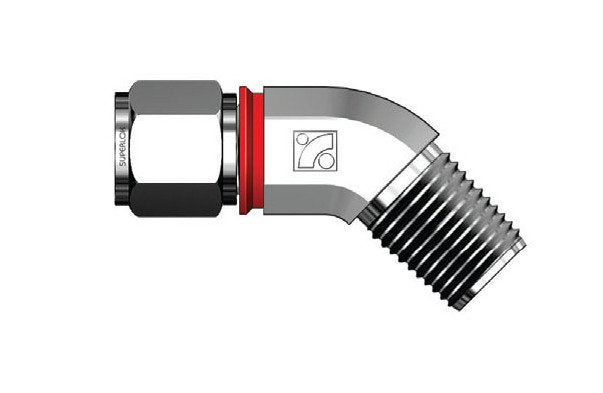

The SHMEI Series 45 Degree Male Elbow is a precision-engineered fitting designed to connect fractional tubes to female NPT threads with exceptional reliability. Crafted from high-quality Alloy 625, Alloy 825, Alloy C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, or Stainless Steel, this male elbow ensures superior durability and corrosion resistance. Featuring innovative i-Fitting® components including a built-in gap gauge, tightening this fitting to achieve perfect compression is effortless and safe. Ideal for valve connections, this industry-changing design boasts increased installer safety, enhanced productivity, and reduced costs in high-pressure environments. Dimensions and drawings provided are for reference, subject to change without notice.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

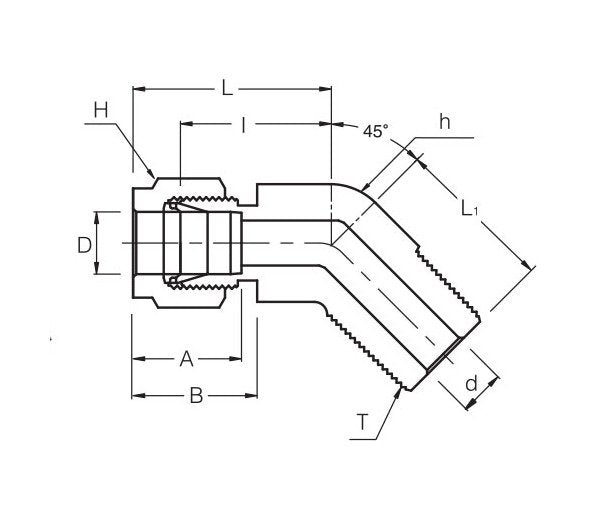

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Angle
45 º
Technical Specs Connection Type
Male
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
21.84 mm
Technical Specs Dimension L
32.00 mm
Technical Specs Dimension L1
24.13 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.65 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
