SHMEI Series 45 Degree Male Elbow - 12mm Tube Outside Diameter & 1/2 Inch Thread Size
SHMEI Series 45 Degree Male Elbow - 12mm Tube Outside Diameter & 1/2 Inch Thread Size
SKU:SHM-ef55a6
Innovative SHMEI 45° Male Elbow for secure metric tube-to-thread connections. Enhances safety & productivity.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SHMEI Series 45 Degree Male Elbow - 12mm Tube Outside Diameter & 1/2 Inch Thread Size
$34.99
Quantity: 1
Claim Your Seller Account
SHMEI Series 45 Degree Male Elbow - 12mm Tube Outside Diameter & 1/2 Inch Thread Size
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

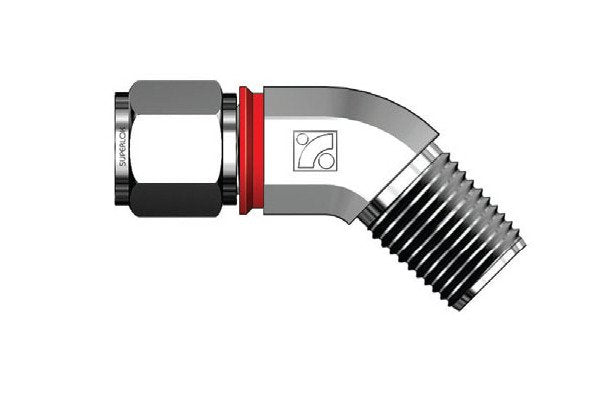

The SHMEI Series 45 Degree Male Elbow is designed to efficiently connect 12mm metric tubes to female ISO tapered threads. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this male elbow ensures reliable performance in various applications. Featuring innovative i-Fitting® components and a patented design by BMT, it offers enhanced safety, productivity, and cost-efficiency. With a 45º angle and precision dimensions, this male elbow provides a secure and leak-free connection, making it ideal for high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

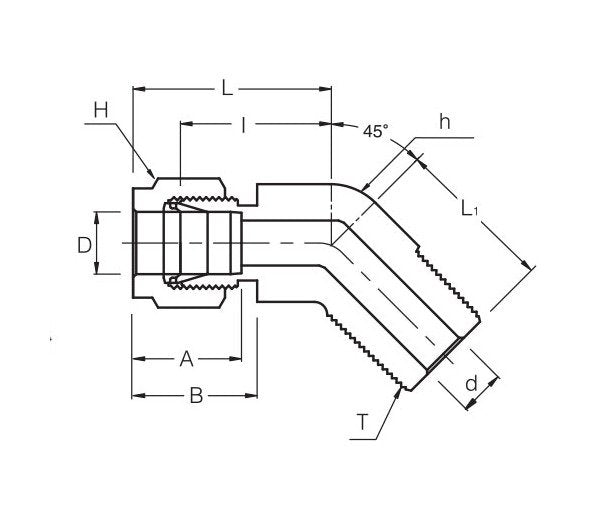

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Angle
45 º
Technical Specs Connection Type
Male
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
21.8 mm
Technical Specs Dimension I
21.8 mm
Technical Specs Dimension L
32.00 mm
Technical Specs Dimension L1
29.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
