SHMEI Series 6mm Tube 45 Degree Male Elbow
SHMEI Series 6mm Tube 45 Degree Male Elbow
SKU:SHM-620543
Enhance connections with the SHMEI Series 6mm Tube Male Elbow featuring i-Fitting® design for precision and safety.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SHMEI Series 6mm Tube 45 Degree Male Elbow
$24.99
Quantity: 1
Claim Your Seller Account
SHMEI Series 6mm Tube 45 Degree Male Elbow
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

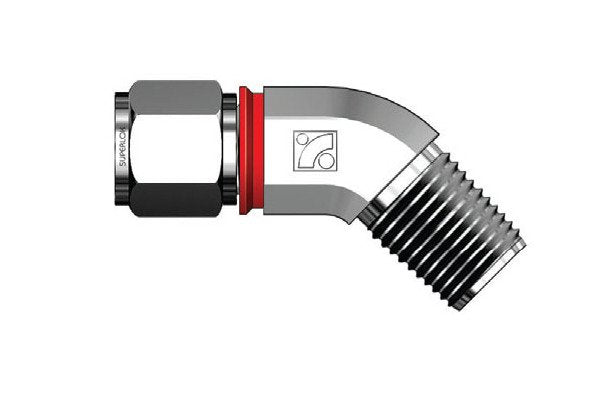

The SHMEI Series 6mm Tube 45 Degree Male Elbow is expertly designed to connect metric tubes to female ISO tapered threads with precision and reliability. Crafted from high-quality materials such as Alloy 625, Stainless Steel, and more, this male elbow boasts a patented i-Fitting® design that ensures perfect compression and enhances installer safety in high-pressure environments. With a built-in gap gauge and industry-leading features, this male elbow offers improved productivity, reduced costs, and seamless valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

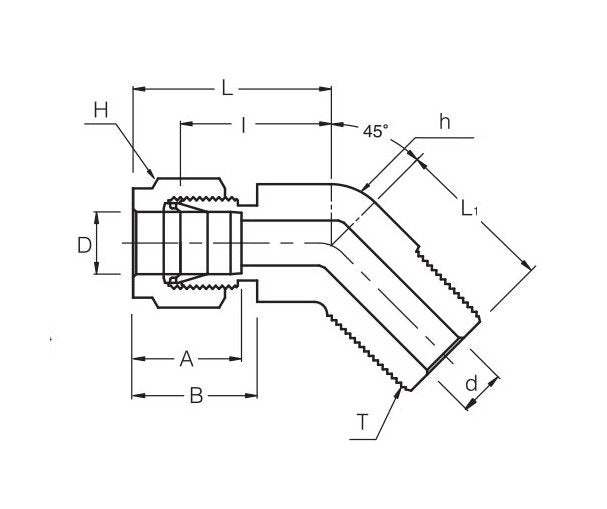

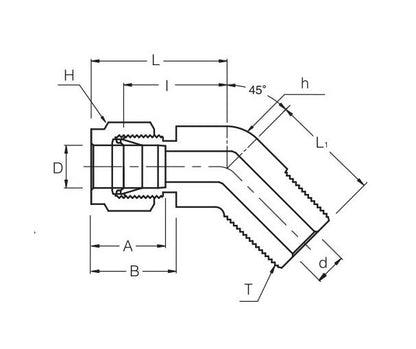

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Angle
45 º
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
17.3 mm
Technical Specs Dimension L
24.6 mm
Technical Specs Dimension L1
16.5 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/8 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
