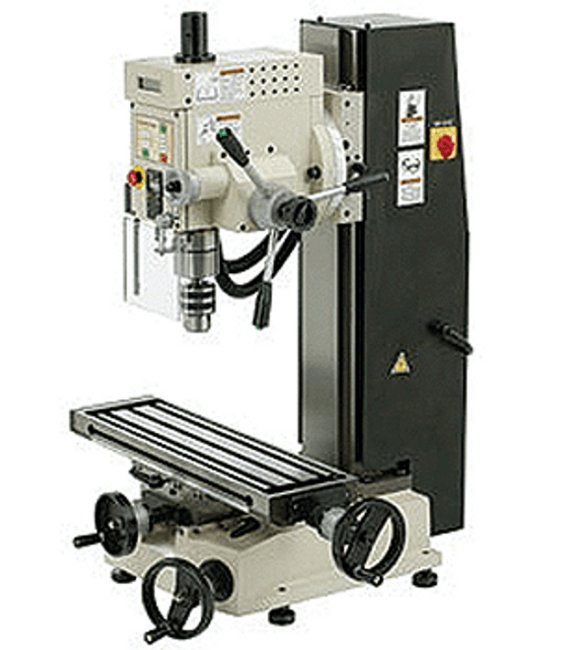

Shop Fox Milling Tapping Machine with Dovetail Column
Shop Fox Milling Tapping Machine with Dovetail Column
SKU:MIL-c55997
Shop Fox Milling Tapping Machine: Precision, Power, Durability. Ideal for Industrial Applications.
Regular price
$3,799.99
Regular price
Sale price
$3,799.99
Unit price
per
Initiate Order
Shop Fox Milling Tapping Machine with Dovetail Column
$3,799.99
Quantity: 1
Claim Your Seller Account
Shop Fox Milling Tapping Machine with Dovetail Column
$3,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shop Fox Deluxe Milling and Tapping Machine with Dovetail Column is a robust solution for precision machining tasks. Featuring a quick-tilt headstock for horizontal milling, a powerful 1 HP brushless motor, a digital depth scale, push-button speed control, and a digital spindle tachometer, this machine ensures efficient and accurate operations. With quick reversing tapping capability for easy hole threading and a 2-year warranty, this machine is built for durability and performance. Ideal for various industrial applications requiring high precision and reliability.
Product Specifications
Features Features
This mill is further fortified with a quick-tilt headstock for horizontal milling, 1 HP brushless motor, a multi-function digital depth scale on the quill, push-button speed control and digital spindle tachometer.The quick reversing tapping feature also makes hole threading simple. Just put the machine in "tapping mode", start the tap, and when the thread is completed, push the button at the end of the rack levers and the spindle reverses.The back-lit digital tachometer tells you the precise spindle speed for matching tooling and material2 Year Warranty.
Note Note
Motor : Brushless, DC w/ step-up transformer, 110V operation
Technical Specs Brands
Shop Fox
Technical Specs Drilling Capacity
1 in
Technical Specs Headstock Travel
14 7/8 in
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Maximum Face Cutter Diameter
2 in
Technical Specs Net Weight
436 lb
Technical Specs Quill Diameter
60 mm
Technical Specs Spindle Motor Power
1 hp
Technical Specs Spindle Speeds
100 to 1750 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
2-7/8 in
Technical Specs Swing
18 in
Technical Specs Table Longitudinal Travel
15 7/8 in
Technical Specs Table Size
6-1/4 x 21-5/8 in
Technical Specs Table Travel Cross
5 3/4 in
Technical Specs Voltage
220 V
