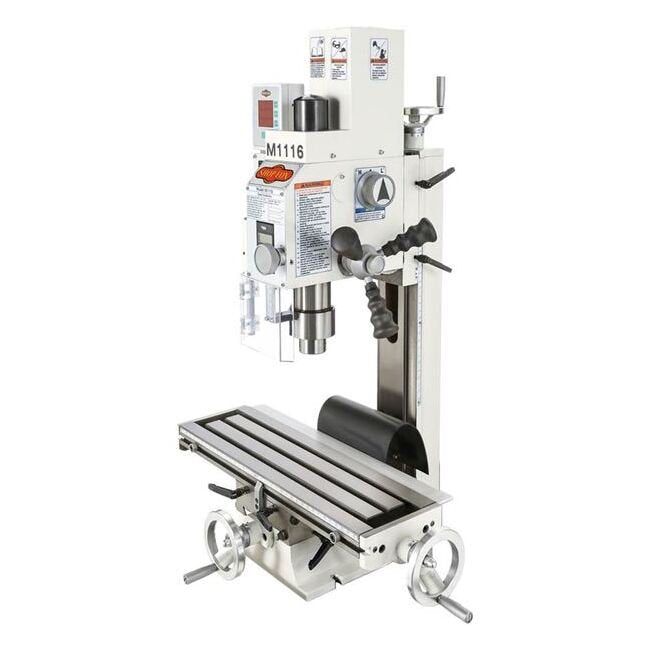

Shop Fox Variable-Speed Mill/Drill with DRO - Industrial Grade Milling Machine
Shop Fox Variable-Speed Mill/Drill with DRO - Industrial Grade Milling Machine
SKU:DRI-6a8f56
Versatile industrial mill/drill with DRO for precise operations. Sturdy construction and variable speed motor for efficient performance.
Regular price
$1,950.00
Regular price
Sale price
$1,950.00
Unit price
per
Initiate Order
Shop Fox Variable-Speed Mill/Drill with DRO - Industrial Grade Milling Machine
$1,950.00
Quantity: 1
Claim Your Seller Account
Shop Fox Variable-Speed Mill/Drill with DRO - Industrial Grade Milling Machine
$1,950.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

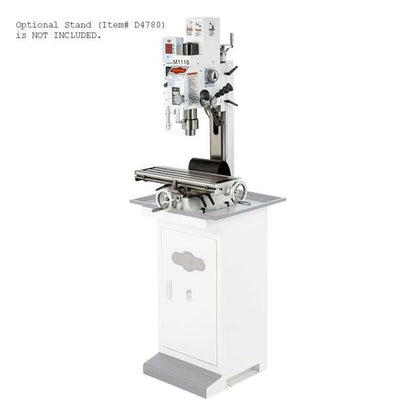

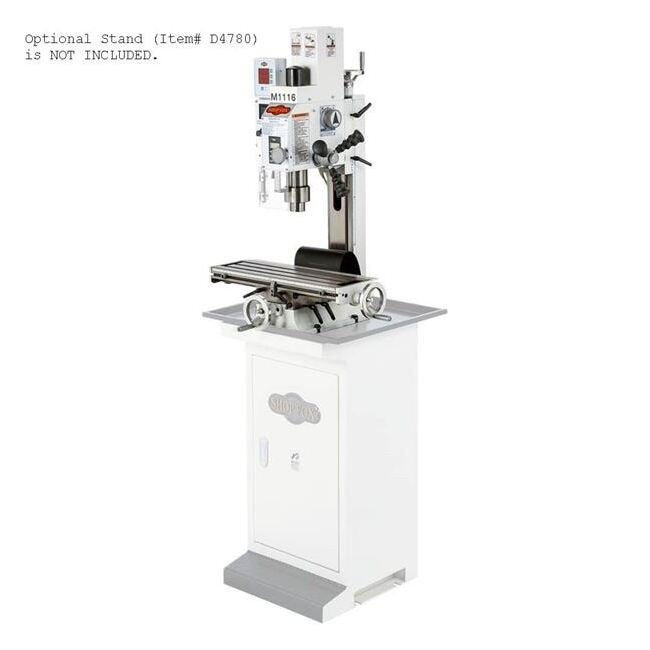

The Shop Fox Variable-Speed Mill/Drill with DRO is a versatile and powerful machine designed for precision drilling and milling operations. With a sturdy dovetail column, variable speed 3/4 HP motor, R8 spindle, and digital readout, this industrial-grade equipment offers reliable performance. Its tapered gibs with double locks ensure stability, while the spacious 7-1/16 x 26-5/8-inch table provides ample workspace. Ideal for both novices and professionals, this machine comes with optional D4780 Stand for a complete solution in any workshop setting.
Product Specifications
Specifications Specifications
Motor: 3/4 HP, 110V, 8A, single-phaseSpindle taper: R8Spindle travel: 2"T-slots: 3 at 2-1/2" centers, 7/16" wideHead travel: 11"Head tilt: 90º left & rightMax. distance spindle to table: 13"Swing: 15"Table travel (longitudinal): 18-7/8"Table travel (cross): 5-1/2"Table size: 7-1/16" x 26-5/8"Spindle speed: 50â2250 RPM3-Axis DRODovetail columnSafety shut off switchDRO on spindleFine feed head control2-Speed gearboxClear guard on spindleRubber chip guards on waysZero setting dialsDials read inchesForward/Reverse switchFloor-to-table height: 37-1/2"Stand footprint: 15-3/4" x 16-1/2"Approximate shipping weight: 392 lbs
Technical Specs Brands
Shop Fox
Technical Specs Crosstable Travel
5 to 1/2 in
Technical Specs Floor To Table Height
37-1/2 in
Technical Specs Maximum Distance Spindle Table
13 in
Technical Specs Motor Horse Power Hp
3/4 hp | 8 A | 110 V
Technical Specs Shipping Weight
392 lb
Technical Specs Spindle Speeds
50 to 2250 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
2 in
Technical Specs Stand Footprint
15-3/4 x 16-1/2 in
Technical Specs Swing
15 in
Technical Specs Table Longitudinal Travel
18 to 7/8 in
Technical Specs Table Size
7-1/16 x 26-5/8 in
Technical Specs Table Travel
18-7/8 in
Technical Specs T Slot
3 at 2-1/2 centers, 7/16 wide in
Technical Specs Vertical Head Travel
11 in
