SIF Series 10.4mm Micron Inline Filter with SUPERLOK Inlet Connections
SIF Series 10.4mm Micron Inline Filter with SUPERLOK Inlet Connections
SKU:SIF-3577ac
Enhance filtration efficiency in limited spaces with the SIF Series 10.4mm Micron Inline Filter featuring 12mm SUPERLOK Inlet Connections.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
SIF Series 10.4mm Micron Inline Filter with SUPERLOK Inlet Connections
$139.99
Quantity: 1
Claim Your Seller Account
SIF Series 10.4mm Micron Inline Filter with SUPERLOK Inlet Connections
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

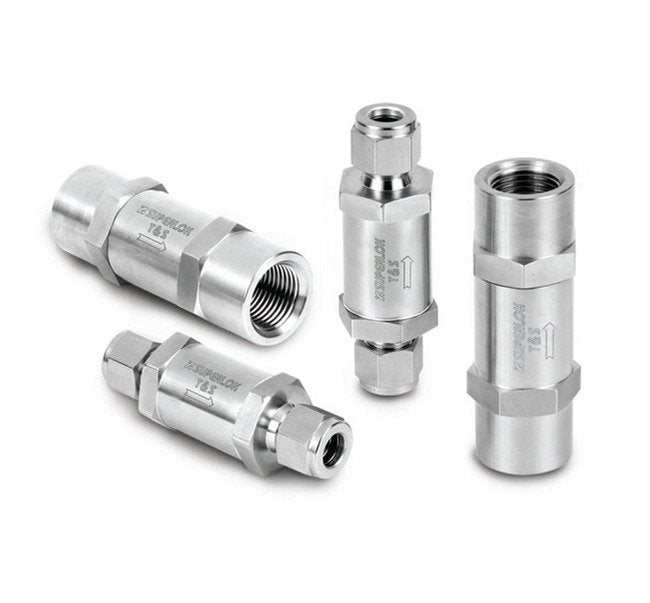

The SIF Series 10.4mm Micron Inline Filter with 12mm SUPERLOK Inlet End Connections is engineered for precision filtration in compact spaces. Crafted from 316 Stainless Steel and Brass, this filter boasts a sintered effective filtration area of 2.0 in², ensuring optimal performance. With a maximum operating pressure of 3000 psi and an operating temperature range of -20 to 900°F, this filter guarantees durability and reliability. Its replaceable filter element and versatile end connections make it ideal for diverse applications, while adhering to stringent industry standards.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note

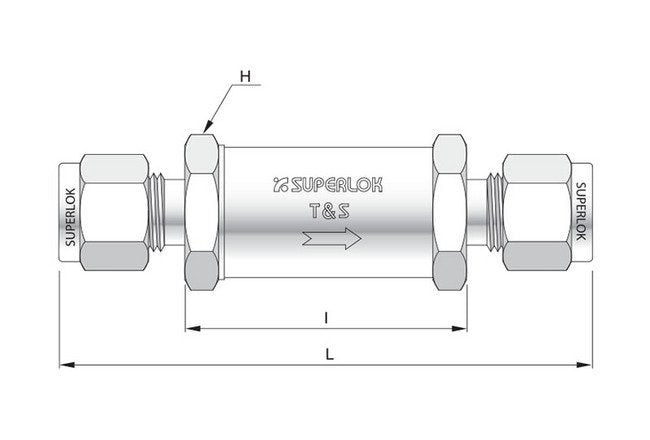

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension H
25.4 mm
Technical Specs Dimension I
43.2 mm
Technical Specs Dimension L
82.2 mm
Technical Specs Inlet End Connections
12 mm Superlok®
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
10.4 mm
Technical Specs Outlet End Connections
12 mm Superlok®
Technical Specs Sintered Effective Filtration Area
2.0 in² | 1280 mm²
